Product Introduction

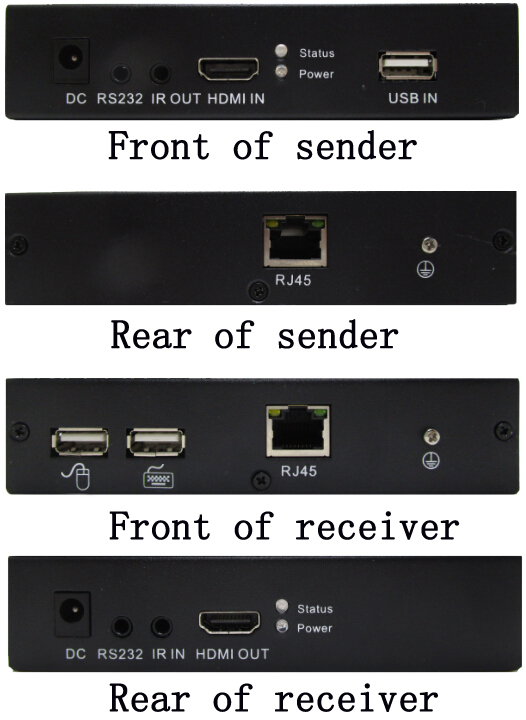

The device includes a sender (with “Sender” logo) and a receiver (with “Receiver” logo), which can transmit HDMI, IR (infra-red control signals), USB over a single cat5e/6/7 cable to remote monitor or TV.
Supports 1080P HDMI HD signals, supports TCP/IP & network switch, each switch provides extra 100m working range.
The USB output supports wired keyboard and mouse, works with DVR/NVR, PC, etc.

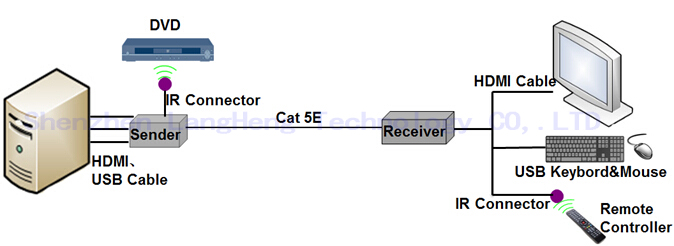

One-to-One direct connection diagram:

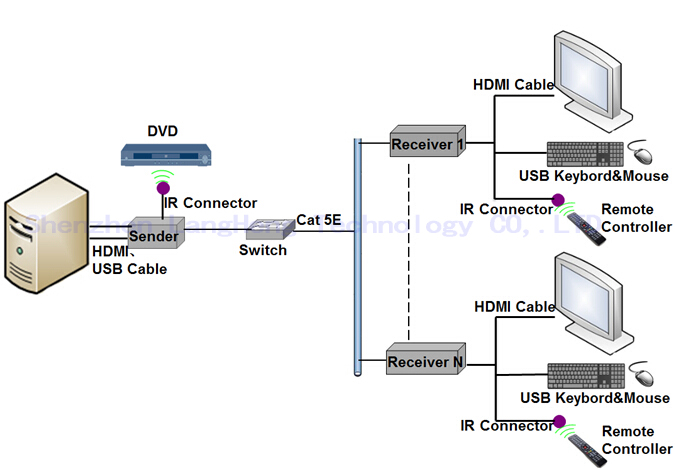

One-to-Many connection diagram:
Features:
1. Supports HDMI1.3, HDCP1.2, all standard resolutions under 1920x1080@60Hz
2. Supports TCP/IP, a sender can work with many receivers via network switch, works like a HDMI splitter, as long as LAN (local Area Network) covers.
3. Up to 200m range for point to point connection, the distance can be extended via 100/1000M network switch, each switch can provide 100m extra distance.
4. Supports DVI-D with HDMI to DVI gender cable
5. Supports IR signals transmission too (optional)
6. Plug & play, no software or driver
Specifications:
Function
|
DVI Input
|
Sender：One way（HDMI、USB、IR）
|
|
DVI Output
|
Receiver：One way（HDMI、2*USB、IR）
|
|
Range
|
200m
|
|
Video & Parameters
|
Input
|
HDMI
|
|
Output
|
HDMI
|
|
HDMI Version
|
HDMI1.3
|
|
HDCP Version
|
HDCP1.2
|
|
Resolution
|
1920x1080@60Hz
|
|
Video Color Format
|
24bit/30bit/36bit
|
|
Support audio format
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
Input/Output TMDS signal
|
0.5-1.5Vp-p(TTL)
|
|
Input/Output DDC signal
|
5Vp-p(TTL)
|
|
USB Features
|
Connector
|
USB Type A
|
|
Protocol
|
Supports usb keyboard and mouse
|
|
IR Feature
|
Connector
|
3.5mm audio jack
|
|
Signals
|
IR signals from remote control
|
|
Size
|
Dim（LxWxH）
|
Sender: 130mm x 92mm x 30mm
Receiver: 130mm x 92mm x 30mm
|
|
Net Weight
|
1Kg
|
|
Material
|
Iron
|
|
Color
|
black
|
|
Power
|
Operating Voltage
|
Input：AC110V-220V，50/60HZ
Output：DC9V/2A
|
|
Sender Power
|
<5W
|
|
Receiver Power
|
<4W
|
|
Condition
|
Operating Temp
|
-15℃-55℃
|
|
Storage Temp
|
-40-80℃
|
|
Humidity
|
0-95% (No condense）
|
