HDE-190HUAS-M(HDMI+USB+Audio+RS232+IR Network Transmitter)
HDE-190HUAS-M(HDMI+USB+Audio+RS232+IR Network Transmitter)
Share to:

The kit comes as a pair, with one sender unit(marked with sender) and one receiver unit(marked with receiver).

It extends high-resolution 1080P HDMI video,audio and USB signals from transmitter to the receiver via single CAT5e/CAT6a cable at a distance of up to 190m. It features a local HDMI output on the sender for local display support enabling you to see what you are extending. Moreover, the HDE-190HUAS supports RS232 & IR control. RS232 control lets you connect a serial I/O device at your display location - an ideal solution for adding a serial touch screen interface to your remote display. While the IR extension enables you to control an IR-enabled source device, such as a Blu-ray player or TV Set-top box.

Ideal for HD security monitoring, multimedia release system, video conference, multi-media classrooms , PC centralized management system applications etc.

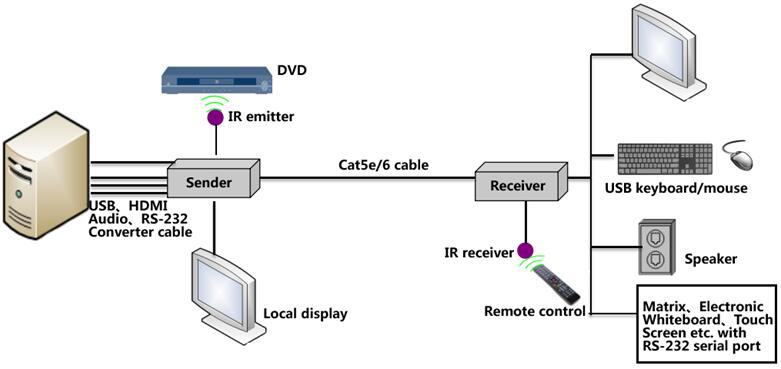

One-to-One direct connection diagram:

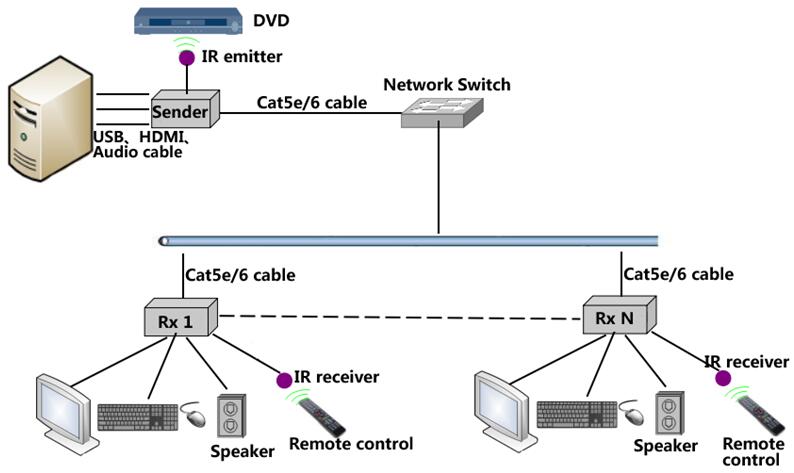

Point-to-multipoint connection diagram:

1. Digital video transmission allows for near-zero signal loss, and 100% true picture at destination even over long distance

2. Supports video resolutions up to 1920*1080P@60Hz

3. Direct 1-to-1 connection and 1-to-many connection through network switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function

4. It features a local HDMI output on the sender for local display support enabling you to see what you are extending

5. Features 3.5mm jacks on both the transmitter and receiver for stereo audio support

6. IR control,RS-232 serial,audio functions optional

Function

Number of input signals

Sender1 channel(HDMIUSBRS232AUDIO)

Receiver1 channel IR

Number of output signals

Sender1 channel (HDMIIR)

Receiver1 channel(HDMIRS232AUDIO)2 channel USB

Transmission distance

Up to 190m (point to point)

Video

I/O

HDMI

HDMI Version

HDMI 1.3

HDCP

HDCP 1.2

Video resolutions

Up to 1080P

Deep color supported

24-bit/30-bit deep color/36-bit deep color

Supported audio formats

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS signal

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

USB

Connector

Type-A

Compatible with

For USB keyboard/mouse only

Audio

Connector

3.5mm stereo audio jack

RS-232

Connector

3-pin phoenix connector

Type

Bi-directional

Infrared control

Connector

3.5mm audio jack

Signals

Infrared remote control signal

Cabling

RJ-45

Cat5E/Cat6

General

Dimensions (LxWxH

Sender:  150mm×64mm×30mm

Receiver:  150mm×64mm×30mm

Housing enclosure

Iron

Colors available

Black

G.W.

1Kg

Power supply

Voltage

DC 12V/1A

Power consumption of sender unit

4W

Power consumption of receiver unit

4W

Operating environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (no condensation
