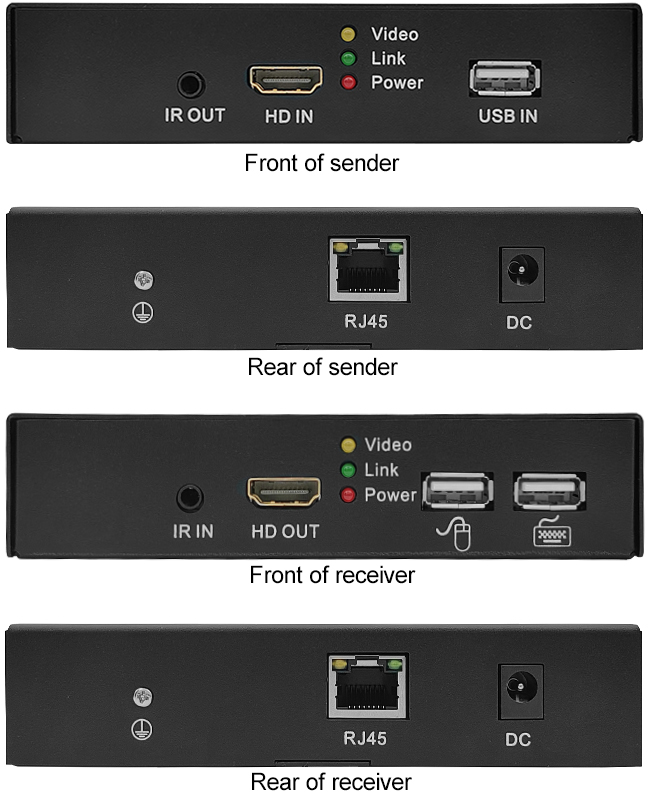

This product is sold as a complete set, consisting of two units: a Transmitter (marked "Sender") and a Receiver (marked "Receiver"). Using a single network cable, it extends HDMI video and USB keyboard/mouse signals up to 190 meters, supporting a maximum resolution of 1080P. It also transmits IR infrared signals to enable remote infrared control of devices such as DVD players and set-top boxes.
This product is applicable to scenarios including security monitoring, data server rooms, industrial control, video education, banking & telecommunications data terminals, and enterprise computer management.

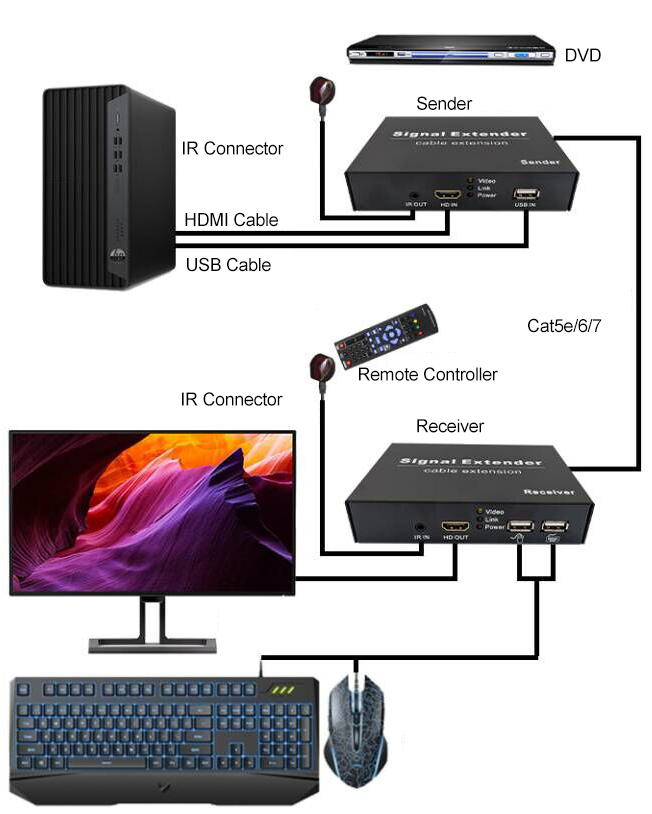

One-to-one connection diagram:

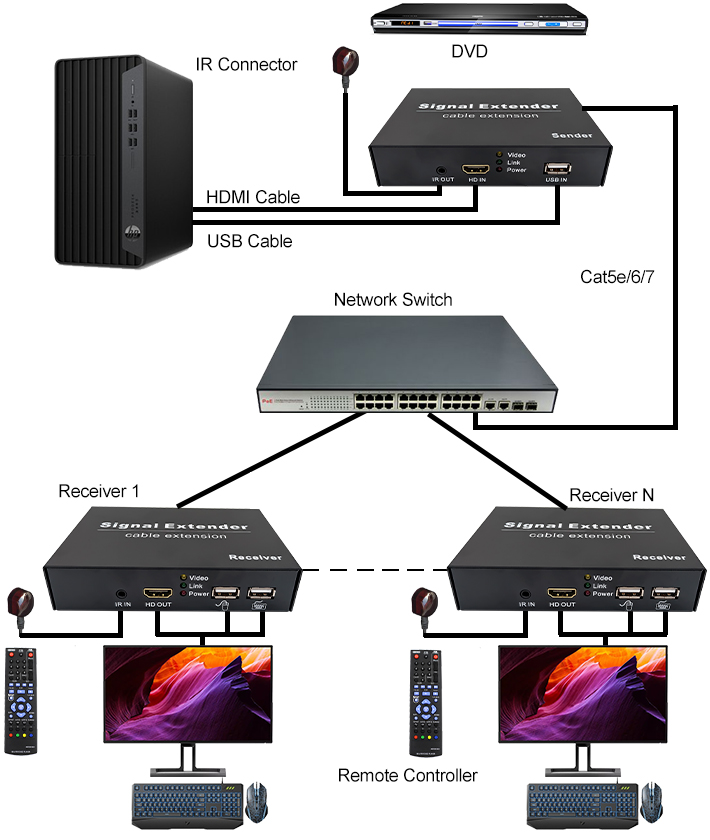

One to many connection diagram:
1.Adopts high-definition digital video compression technology for stable performance, clear video, low bitrate and ultra-low latency.
2.Maximum supported resolution: 1920×1080@60Hz.
3.Supports transmission over local area networks (LAN).
4.Can work with network switches to extend transmission distance; one Transmitter can drive multiple Receivers for signal distribution.
5.IR infrared control function (optional accessory).
