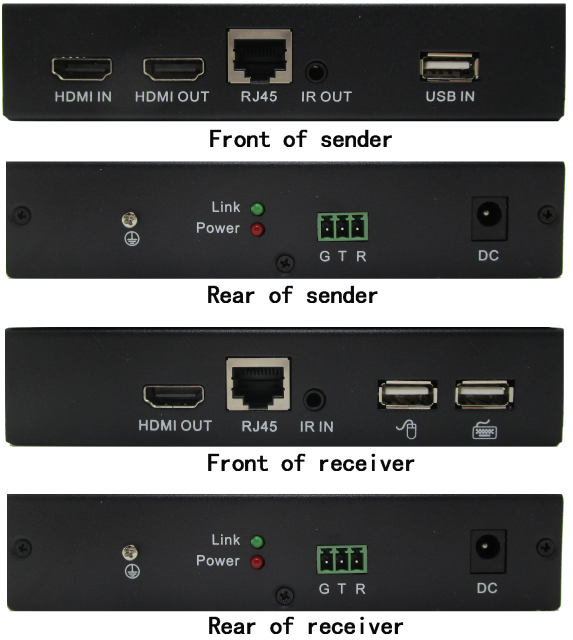

This product is a
pair of complete sets of equipment, one of which is the transmitter (labeled
Sender), one is the receiver (labeled Receiver); HDMI KVM network transmitter
uses H.264 high-definition digital video compression technology, using a single
cable can extend the distance of the signal source's HDMI, USB mouse and mouse,
and IR interface to 200 meters, and support resolutions up to 1080P.
Products
can be used in security surveillance, multimedia information release, video
conferencing, energy and power supply industries, government departments, medical
systems, commercial displays, utilities and other fields.

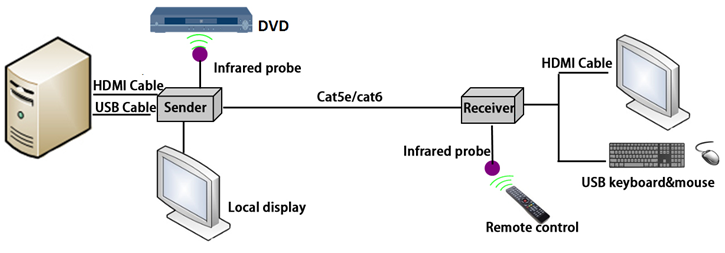

One-to-one connection diagram:

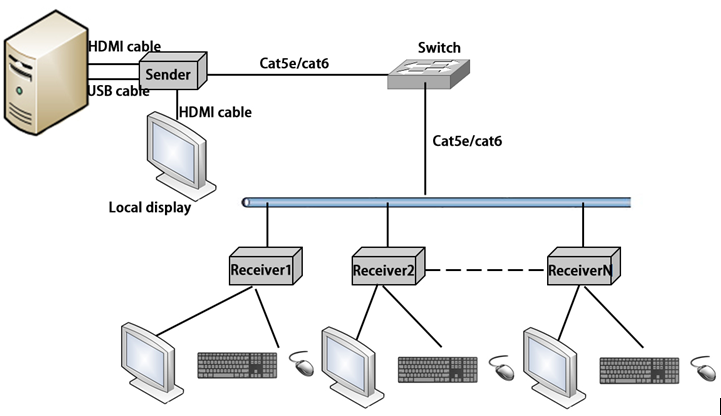

One to many connection diagram:
1. Using H.264 high-definition digital video
compression technology, product stable and reliable, clear video, small stream,
low latency;
2. Support the highest resolution up to 1920x1080 @
60Hz;
3. Support through the LAN transmission,
4. Connect LAN switch can increase the transmission
distance, and a sender match multiple receivers can achieve the distribution function;
5. Sender with HDMI loop out interface;
6. Infrared
function (optional).
