Product Introduction:
This newly developed product supports TCP/IP transmission of video, usb,audio,mic,rs232 signals of computer max up to 120 meters through single cat5e cable. User can receive the video and audio signal remotely at real-time, it also provides a DVI interface on sender part for local use.
And the product supports HD video (HDMI/DVI/VGA) transmission max up to 1920*1080@60Hz, and max extension distance per single pair is 120meters over TCP/IP, and it can reach 200meters after connecting switch, and it supports multiple cascade operation.
The product can be widely used in military command and control system, police command an control system, traffic management system, power and electricity supply industry, government projects, medical system, commercial presentation system, multimedia system etc.

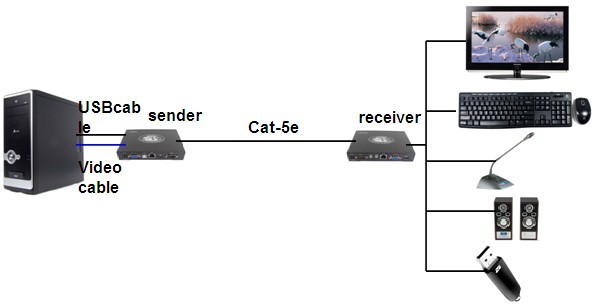

Connection and Schematic Diagram 1:

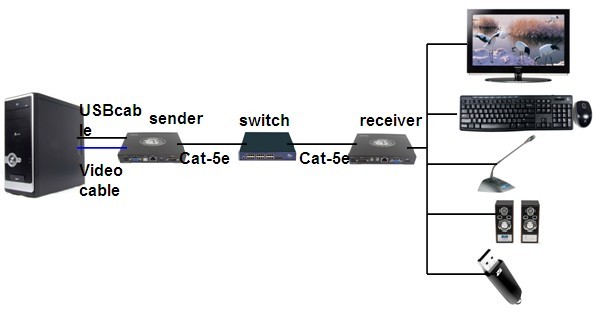

Connection and Schematic Diagram 2:
Connection and Schematic Diagram 3:
Product Feature:
1. Provide a DVI interface on sender part for local operation.
2. Use single UTP cable for transmission, cost saving.
3. Support USB1.1, compatible with USB2.0 protocol.
4. Energy saving, environment friendly, heat and radiation reduction.
5. Support DOS，Windows，NT，Linux etc.
6. Pure hardware design, no software needed, easy to install.
7. Real-time remote control and display, and with high anti-interference ability.
8. Can transmit video, audio, USB and MIC signals of computer at the same time.
Product Specification:
|
Power supply
|
Voltage
|
5V DC
|
|
Sender power
|
5W
|
|
Receiver power
|
5W
|
|
Video transmission function and interfaces
|
HDMI
|
HDMI1.1 1.2 1.3
|
|
HDCP
|
HDCP1.2
|
|
HDMI resolution
|
1080p/1080i/720p/720i/576p/576i/480p/480i
|
|
Video color format
|
24bit/deep color, 30bit/deep color, 36bit
|
|
Audio format
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
Max transmission rate
|
1Gbps
|
|
I/O TMDS signal
|
0.5-1.5Vp-p(TTL)
|
|
I/O DDC signal
|
5Vp-p(TTL)
|
|
Input cable length
|
≤20m AWG26 HDMI 1.3 standard cable
|
|
Output cable length
|
≤20m AWG26 HDMI 1.3 standard cable
|
|
USB connector
|
Protocol
|
Support USB1.1, compatible with 2.0 protocol USB device
|
|
Audio
|
|
3.5mm stereo audio
|
|
Physical parameters
|
Size
|
Sender : 164mm*115mm*26mm
Receiver: 164mm*123mm*26mm
|
|
Housing
|
Metal
|
|
Color
|
Black
|
|
N.W.
|
0.75Kg
|
|
Environment
|
Operation temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (Non-condensing）
|
Front drawing:
