IPHA-120S(HDMI/DVI&USB&Audio&Mic OVER IP)
IPHA-120S(HDMI/DVI&USB&Audio&Mic OVER IP)
Share to:
Product Introduction:
      This set of equipment includes a sender and a receiver, which can transmit HDMI/DVI Video, Audio, USB, MIC and RS232 signals of PC to a remote location over single network cable, and it also provides a DVI output interface on local unit. The device supports HD video transmission at 1920×1200@60Hz resolution, and the extension distance per single pair is 120meters, it also support TCP/IP protocol and can reach 200meters after connecting network switch, multiple cascade operation is available.
      This product can be widely used in video conference system, multimedia display system, medical display system, commercial presentation system etc.

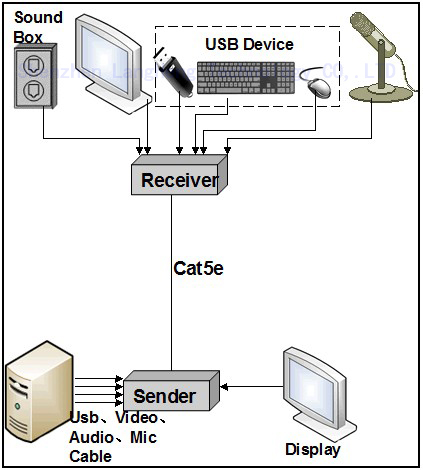

Connection diagram:

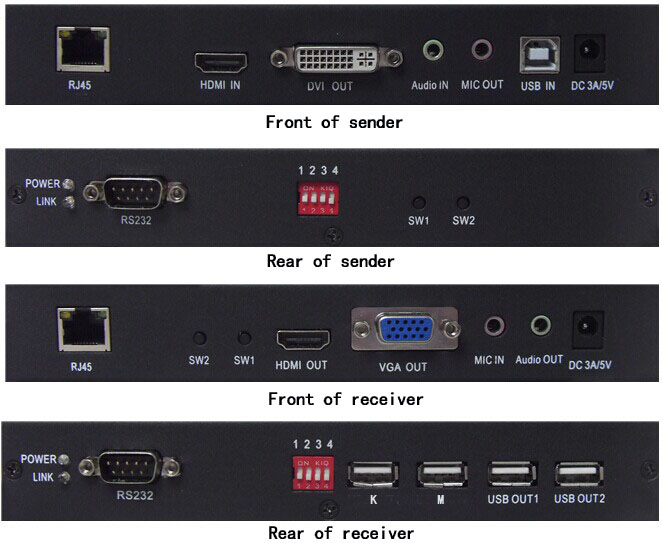

DIP Switch Instruction:
        The DIP switch is used in many-to-many connection solution via network switch, no need to do any setting to network switch, just adjust the DIP switch of devices and make sure all senders and receivers connected to switch are within the same local area network. Only same DIP switch setting senders and receivers can set up data communication, or the communication will be cut off.
        If multiple receivers’ DIP switch setting is same as only one sender’s, then the system can work as a video distributor. Note the setting will be applied after power off and restart the system.
        The DIP switch setting of each sender must be unique and different from other senders, since there’s only 4 switches on each sender, so maximum 16 senders can be connected to one network switch, however the number of receiver is no limitation.

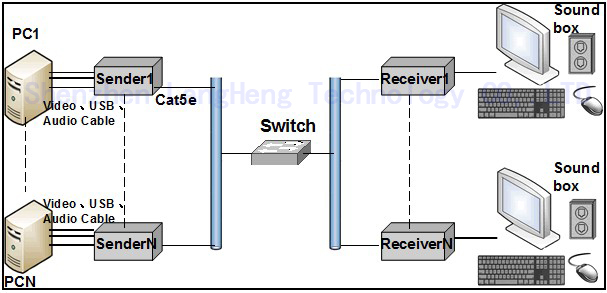

Connection diagram:

1, Support 1080P,1920×1200  resolution
2, Support many-to-many connection via network switch, and can work as a matrix switcher by setting DIP switch
3, Single network cable transmission, pure hardware design, plug and play
4, Support DVI/HDMI, USB, AUDIO, MIC, RS232 interface
5, Support bi-direction audio transmission
6, Serial function for option
7, HDMI audio and 3.5mm AUDIO can not work at the same time, only one can work at a time

Product Specification:

Function

Input signal

Sender: 1way(HDMI, USB, AUDIO, MIC,
RS232)

Output signal

Sender: 1way DVI-I

Receiver: 1way(HDMI, AUDIO, MIC,
 RS232),4way USB

Transmission distance

120meters

Video

Video input

HDMI

Video output

Sender: DVI-I

Receiver: HDMI

HDMI version

HDMI1.3

HDCP version

HDCP1.2

HDMI resolution

1080p/1080i/720p/720i/576p/576i/480p/480i,1920×1200

Video color format

24bit/deep color 30bit/deep color 36bit

Audio format

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Input/Output TMDS

0.5-1.5Vp-p(TTL)

Input/Output DDC

5Vp-p(TTL)

Input cable length

≤20m AWG26 HDMI 1.3 standard cable

Output cable length

≤20m AWG26 HDMI 1.3 standard cable

USB

interface

Protocol

Support USB2.0 protocol

Serial

Interface

DB-9 (male)

Audio

Interface

3.5mm stereo audio jack

Transmission

 connector

RJ-45

CAT5E,CAT6

Max transmission speed

1Gbps

Physical

Size(L× W× H)

Sender : 164mm×115mm×26mm

Receiver: 164mm×123mm×26mm

Housing

Metal

Color

Black

N.W.

0.75Kg

Power

Voltage range

Input: AC110V-220V,50/60HZ

Output: 5V/3A  DC

Sender power consumption

<5W

Receiver power consumption

<4W

Environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (Non-condensing)
