UKVM-100HDU UKVM Extender 100m(Industrial Grade)
UKVM-100HDU UKVM Extender 100m(Industrial Grade)
Share to:

   This set of equipment includes a sender and a receiver, it can extend USB, VGA interfaces of computer up to 100 meters through single CAT5e cable, so that user can control and use the computer remotely. And there’s a VGA interface on sender part for local operation by user. Such being the case, user can put the computer in a safe place when apply the computer to a data service center, which is very convenient for maintenance and management, as well as enhancing the security of date.
  It is widely used in date service center, industrial control, education, banks, enterprises, as well as for family purpose etc.



Features and Benefits:
  • It provides a KVM port on the Sender
  • Use the single cable (CAT5,CAT5E,CAT6),the cost is inexpensive
  • It supports (USB port) keyboard and mouse,it supports (VGA) port monitor
  • It can remove and insert the local and remote keyboard and mouse
  • Power on computer use the emulational keyboard and mouse
  • Support the top resolution 1920x1440@85Hz
  • The remote keyboard and mouse display is in real-time
  • The anti-jamming is strong
  • Cascade operation for increasing the distance

paramenter:

Size:
110mmx110mmx30mm
Weight:
0.55KG
input connector:
HD15PIN(VGA)
output connector:
HD15PIN(VGA)
local output:
HD15PIN(VGA)
bandwidth:
300MHz(-3 dB)

0-10MHz +0.1dB

0-130MHz +6dB to -0.8 dB
input level range:
0.5-2.0Vp-p
input level error:
less than 3mV
input impedance:
75Ω
output impedance:
75Ω
echo ullage:
-30dB@5MHz
Max DC compensation:
±5mV-0
SNR:
60dB
Connector standard:
HDB15,Mini-DIN6,RJ45
Video standard:
VGA,SVGA,XGA,SXGA,UXGA,LCD
Cable standard:
CAT5,CAT5E,CAT6 UTP
Power adapter:
                                              DC9-12V/1A
operational temperature:
-25℃~+70℃
deposited temperature:
-40℃~+80℃
relative humidity:
0~95%(non-condensing)
MTBF:
>30000 hours

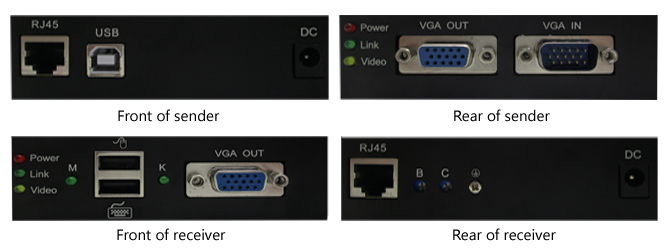

Front drawing:
