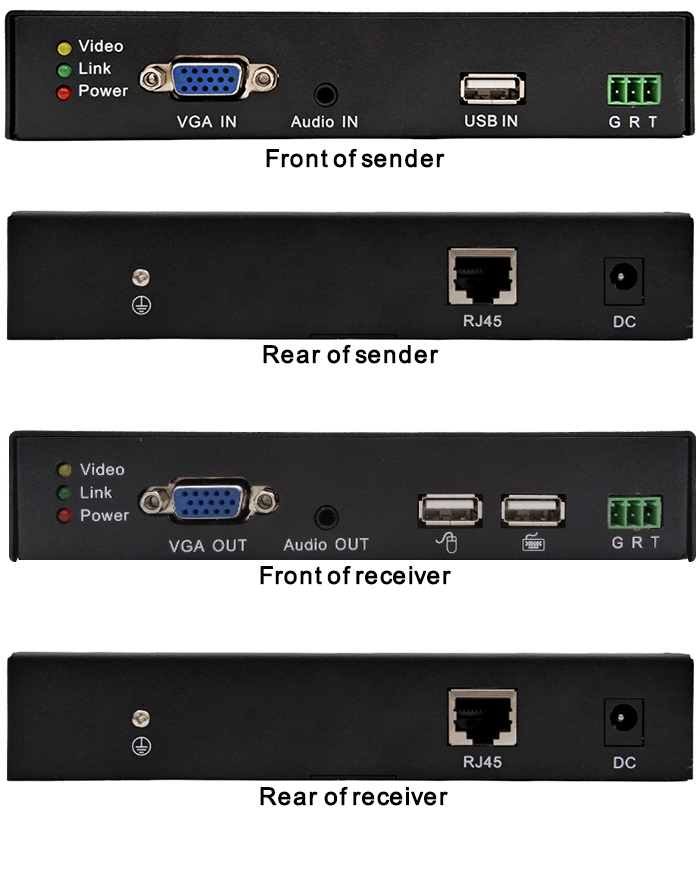

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
The HDF-120VAUS extends Full HD 1080P@60Hz VGA signal and corresponding audio from Sender to the Receiver via single Cat5e/6/7 cable at a distance of up to 120m. RS-232 control lets you connect a serial I/O device at your display location - an ideal solution for adding a serial touch screen interface to your remote display.
Ideal for Military Command and Control systems , public safety management systems, traffic control systems, energy and electric power supply, government departments, health care systems, trade fairs, multi-media halls, public utilities applications, etc.

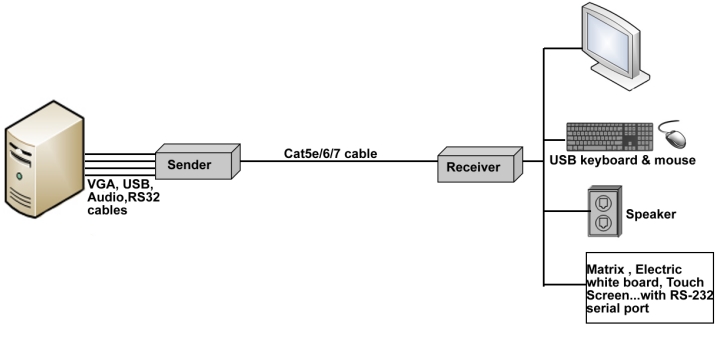

Connection Diagram:
1. Digital video transmission with zero latency with strong anti-interference ability;
2. Extends VGA signals up to 120m via single Cat5e/6/7 cable;
3. Supports video resolutions up to 1920*1080P@60Hz;
4. USB extension – Equipped with 2 USB ports on the Receiver (RX) to control your computer at a remote location with a USB keyboard and mouse;
5. Features 3.5mm jacks on both the Sender and Receiver for audio speaker connection;
6. RS232 control lets you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display;
7. Pure hardware design, compatible with any operating system;
8. Anti-static, lightning protection, and strong anti-interference properties;
9. Features automatic video adjustment for optimizing image quality at maximum distances;
10. High quality metal housing improves heat dissipation and ensure system stability during long hours of operation;
11. Audio, RS-232 functions optional;
12. Plug and play installation, no software or driver needed
