Introduce

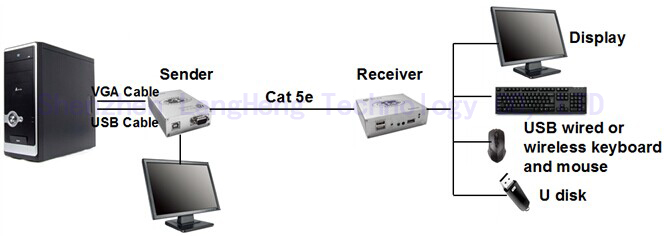

The device includes a sender (sender mark on case) and a receiver (receiver mark on case). It helps to extend the USB and VGA ports of a PC up to 50m. User can operate a PC 50m away with this product. There are 3 USB ports in the receiver, supports all standard USB1.1 or USB2.0 devices. It also has a VGA output port in sender, convenient for user to operate the PC. It is also suited for sever room control, place the hosts in a safe room, and operate them 50m away with this product.
Generally the USB KVM extender is helpful for maintenance of the service room, datum security, management of small work station, reduce noise and heat emitting. Ideal product for datum service center, industrial control, education, datum communication, small business and home entrainments, etc.
1，The image after transmission is clear and natural
2，No compression transmission, operation without delay
3，Resolution support 1080P, up to support 1920 * 1440.
4，The receiver extends three standard USB 2.0 ports and can support a variety of USB devices.
5，Anti-static, lightning, anti-jamming design, product stability and reliability.
6，Aluminum shell design, more conducive to heat, you can work for a long time.
Specification:
|
Function
|
Input
|
VGA、USB
|
|
Output
|
VGA (port in sender for local monitoring)
VGA、AUDIO、USB x3
|
|
Distance
|
50m
|
|
VGA Port& Specs
|
Video Input
|
Male VGA Port
|
|
Video Output
|
Female VGA Port
|
|
Video Bandwidth
|
>350MHz(-3dB)
|
|
Synchronous Signal
|
>200KHZ
|
|
Max Resolution
|
1920×1440@60Hz
|
|
USB
|
Protocol
|
Support USB2.0
|
|
Transmitting Port
|
RJ-45
|
For Cat5e/Cat6 cable
|
|
Properties
|
Size (L×W×H）
|
Sender: 110mm×93mm×33mm
Receiver: 110mm×93mm×33mm
|
|
Net Weight
|
0.55Kg
|
|
Case
|
Aluminum
|
|
Color
|
Silver
|
|
Power
|
Working Voltage
|
Input：AC110V-220V，50/60HZ
Output：DC12V/1A
|
|
Power Consumption (sender)
|
<2W
|
|
Power Consumption (Receiver)
|
<4W
|
|
Surrounding Condition
|
Working Temperature
|
-15℃-55℃
|
|
Storage Temperature
|
40-80℃
|
|
Humidity
|
0-95% (No Condense）
|

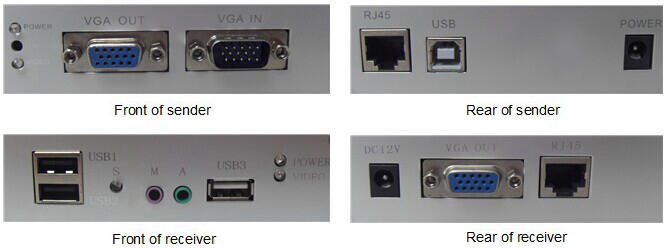

Front drawing:
