DF-2HD(Four USB2.0+VGA+Audio+MIC Extend 50m)
DF-2HD(Four USB2.0+VGA+Audio+MIC Extend 50m)
Share to:

This product is a pair of complete sets of equipment, one of which is the transmitter (labeled Sender) and the other is the receiver (labeled Receiver). Only use a single network cable to extend the computer's keyboard, mouse, VGA video, stereo audio, microphone, USB interface up to 50 meters, can be used with USB control, input and output devices for display and control. The user can control the use of the computer at 50 meters, copy data, online games, online chat and listen to music and other entertainment activities, the image effect is clear and natural, no delay. The host can be placed in a safe and centralized place, which is convenient for maintenance management, ensuring the safety of the equipment, and reducing noise and heat.

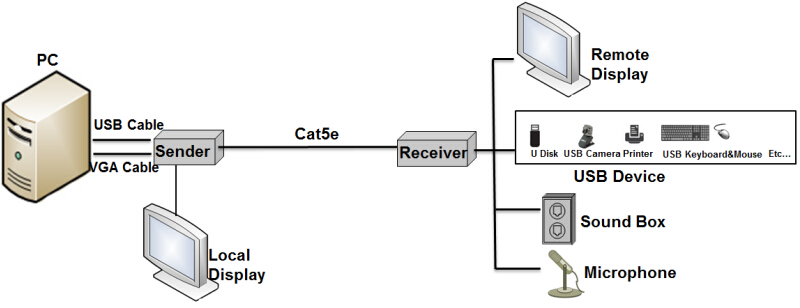

Application Map
1. The brightness and contrast of the receiver support manual adjustment, and the transmitted image is clear and natural.
2. No compression transmission, no operation delay.
3. Resolution support 1080P, up to 1920*1440.
4. The receiver extends four standard USB 2.0 interfaces to support multiple USB devices.
5. Anti-static, lightning and anti-interference design, the product is stable and reliable.
6.Audio functions optional

Function

Input

VGAUSB

Output

VGA (port in sender for local monitoring)

VGAAUDIOMICUSB x4

Distance

50m

VGA Port& Specs

Video Input

Male VGA Port

Video Output

Female VGA Port

Video Bandwidth

>350MHz(-3dB)

Synchronous Signal

>200KHZ

Max Resolution

1920×1440@60Hz

Audio Features

Connector

Transmitter USB input, receiver turn out 3.5mm stereo audio socket

Bandwidth

10HZ~20KHZ

USB

Protocol

Support USB2.0

Transmitting Port

RJ-45

For Cat5e/Cat6 cable

Properties

Size (L×W×H

Sender:     151mm×107mm×30mm

Receiver:    151mm×107mm×30mm

Gross Weight

1.5Kg

Case

Iron

Color

Black

Power

Working Voltage

InputAC110V-220V50/60HZ

OutputDC9V-12V/1A

Power Consumption (sender)

<2W

Power Consumption (Receiver)

<4W

Surrounding Condition

Working Temperature

-15-50

Storage Temperature

40-80

Humidity

0-95% (No Condense
