UKVMA-200D(USB+Audio+VGA+Power Switch Extend 200m)
UKVMA-200D(USB+Audio+VGA+Power Switch Extend 200m)
Share to:

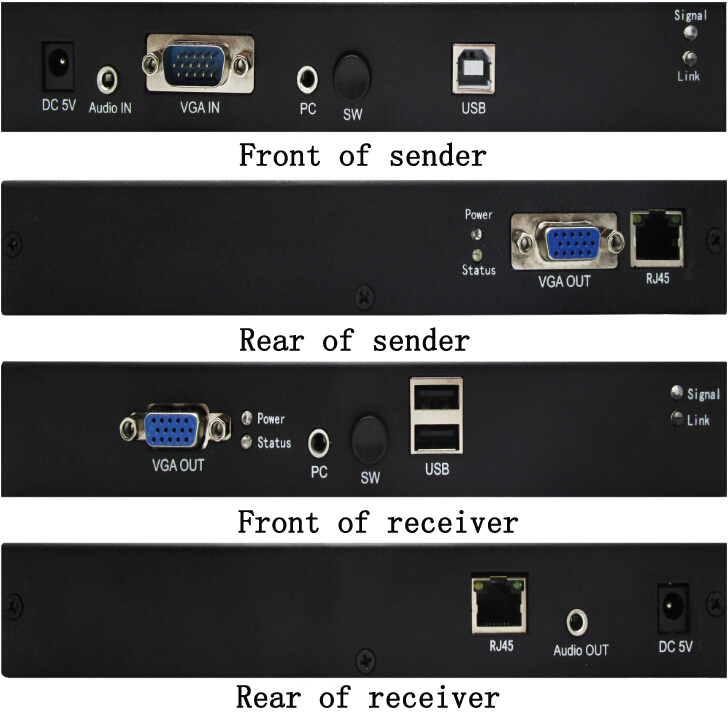

The product includes a sender (with “Sender” logo) and a receiver (with “Receiver” logo), supports VGA, USB, Audio&PC signals transmission to remote location by single cat5e/6, user can operate a computer far away (200m max). Supports HD VGA signal, max resolution 1920x1080 @ 60Hz.

The product can be widely used in data service center, industrial control, video conference system etc.

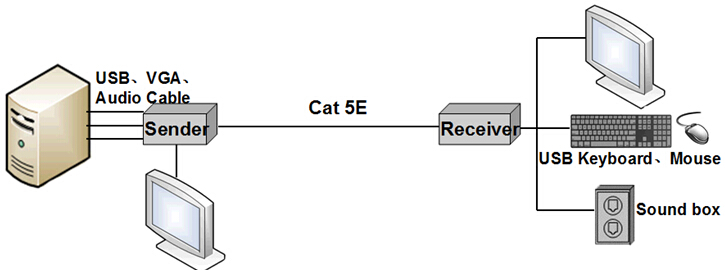

Application Map

1, Max resolution support 1920*1080@60Hz

2, Extension distance up to 200 meters

3, Single network cable transmission, pure hardware design, no need any software driver, plug and play

4, Video auto setting to fit the monitor

Function

Signal Input

Sender: VGA, USB, Audio

Output

Sender: VGA to local monitor
Receiver: VGA, Audio, USBx2

Distance

200m

VGA Connector & Performance

Video Input

VGA Male

Video Output

VGA Female

Bandwidth

> 350MHz (-3dB)

Synchronized

> 200KHz

Video Resolution

Supports up to 1080p

Audio Jack & Performance

Socket

3.5mm Stereo Audio Jack

Bandwidth

10Hz~20KHz

Communication

Infra-red control signal

USB Port

Protocol

Non Standard, Supports USB Keyboard and Mouse only

Transmission Port

RJ-45

For Cat5e/Cat6 cable

  Properties

Size(L×W×H)

Sender  :  205mm×110mm×30mm
Receiver :  205mm×110mm×30mm

Net Weight

1Kg

Case

Iron

Color

Black

Power Adaptor

Operating Voltage

Input:AC110V-220V,50/60HZ
Output:DC 5V/2A

Sender power

<4W

Receiver power

<3W

         Environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (Non-condensing)
