Introduce:
This product is a pair of complete sets of equipment, one of which is the transmitter (labeled Sender) and the other is the receiver (labeled Receiver). Only use a single network cable to extend the computer's keyboard, mouse, VGA video, stereo audio, microphone, USB interface up to 50 meters, can be used with USB control, input and output devices for display and control. The user can control the use of the computer at 50 meters, copy data, online games, online chat and listen to music and other entertainment activities, the image effect is clear and natural, no delay. The host can be placed in a safe and centralized place, which is convenient for maintenance management, ensuring the safety of the equipment, and reducing noise and heat..

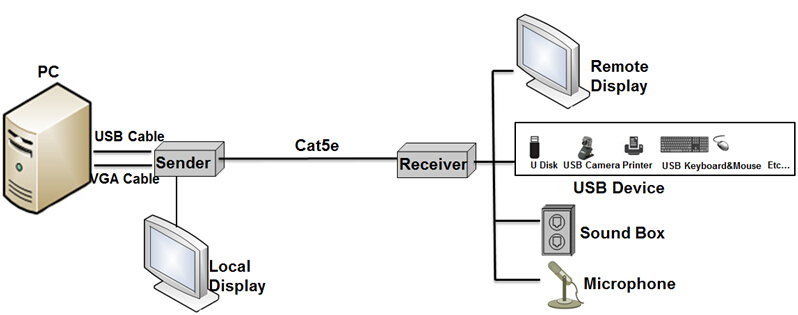

Connection Diagram:
1,The image after transmission is clear and natural
2,No compression transmission, operation without delay
3,Resolution support 1080P, up to support 1920 * 1440.
4,The receiver extends four standard USB 2.0 ports and can support a variety of USB devices.
5,Anti-static, lightning, anti-jamming design, product stability and reliability.
6,Audio functions optional
Function
|
Input
|
VGA、USB
|
Output
|
VGA (port in sender for local monitoring)
VGA、AUDIO、MIC,USB x4
|
Distance
|
50m
|
VGA Port& Specs
|
Video Input
|
Male VGA Port
|
Video Output
|
Female VGA Port
|
Video Bandwidth
|
>350MHz(-3dB)
|
Synchronous Signal
|
>200KHZ
|
Max Resolution
|
1920×1440@60Hz
|
Audio Features
|
Connector
|
Transmitter USB input, receiver turn out 3.5mm stereo audio
socket
|
Bandwidth
|
10HZ~20KHZ
|
USB
|
Protocol
|
Support USB2.0
|
Transmitting Port
|
RJ-45
|
For Cat5e/Cat6 cable
|
Properties
|
Size (L×W×H)
|
Sender: 151mm×107mm×30mm
Receiver: 151mm×107mm×30mm
|
Gross Weight
|
1.5Kg
|
Case
|
Iron
|
Color
|
Black
|
Power
|
Working Voltage
|
Input:AC110V-220V,50/60HZ
Output:DC9V-12V/1A
|
Power Consumption (sender)
|
<2W
|
Power Consumption (Receiver)
|
<4W
|
Surrounding Condition
|
Working Temperature
|
-15℃-50℃
|
Storage Temperature
|
40-80℃
|
Humidity
|
0-95% (No Condense)
|
