HDB-70D (HDMI & infrared no compression extension of 70 meters)
HDB-70D (HDMI & infrared no compression extension of 70 meters)
Share to:

Product Introduction

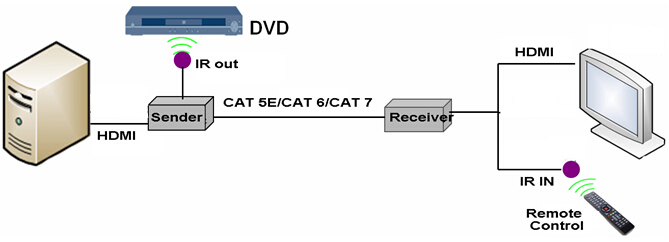

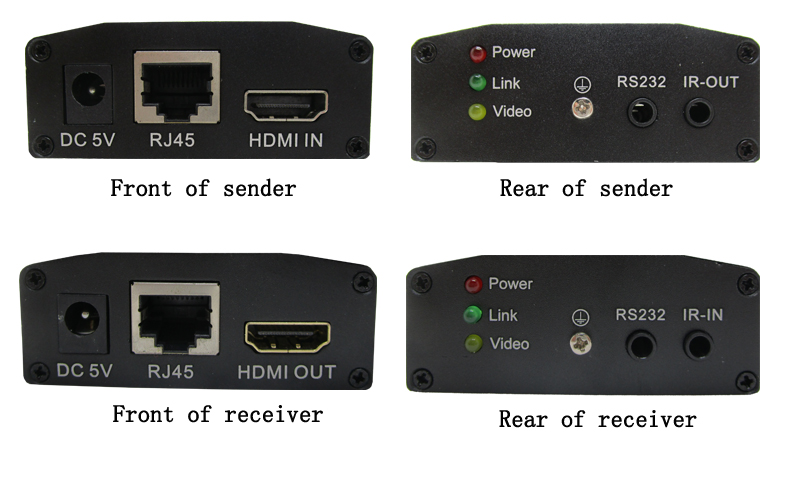

The device includes a sender (with “sender” mark) and a receiver (with “receiver” mark) , extends HDMI and IR signals to remote places.

High bandwidth, no loss, no frame delay, plays real time HD video at remote places.

Widely used in computing and surveillance systems, big screen advertisement system, video wall, bank, stock market, education system etc.


Product Feature
● Works over single network cable, save cost
● Support HDMI1.4 protocols
● Support HDCP
● HDBase-T technology, 10G high bandwidth, no signal loss, no frame delay, high quality video, anti electromagnetic interference.
● Support 3D
● IR function for option

Specifications

Signals

Input

Sender: HDMI、IR (one way each)

Output

Receiver:HDMI、IR (one way each)

Distance

1080P:70 meters

4K×2K:40 meters

Video Parameters

HDMI Version

HDMI1.4

HDCP Version

HDCP1.2

HDMI Resolution

1080p/1080i/720p/720i/576p/576i/480p/480i

Up to 4K×2K

Color Format

24bit /deep 30bit /deep 36bit

Audio Format

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Bandwidth

10Gbps

I/O TMDS Signals

0.5-1.5Vp-p(TTL)

I/O DDC Signals

5Vp-p(TTL)

IR

Connector

3.5mm Audio Jack

Signals

IR remote control signal

Power

Operating Voltage

IN:AC110V-220V,50/60HZ

OUT:DC5V/2A

Power Consumption

Sender:5W

Receiver:5W

Physical Parameters

Size(LxWxH)

Sender:79mm×64mm×26mm

Receiver:79mm×64mm×26mm

Case

Aluminum

Color

Black

Environment

Storage Temperature

-40-80℃

Humidity

0-95% (No condense)

Working Temperature

-15℃-55℃
