HDT-150HS(HDMI+Two Way RS232+Two Way IR)Uncompressed Extend 150m
HDT-150HS(HDMI+Two Way RS232+Two Way IR)Uncompressed Extend 150m

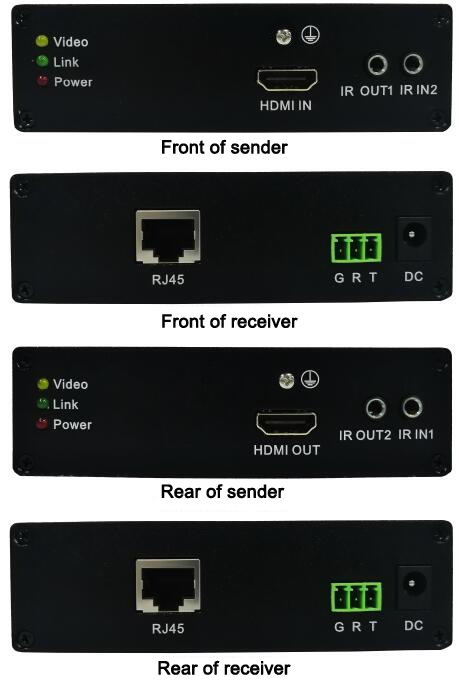

      The kit comes as a pair, with one sender unit(marked with sender) and one receiver unit(marked with receiver).

It can extend ultra high-resolution 4K HDMI signals from transmitter to the receiver via single CAT5e/6/7 cable at a distance of up to 150m. Moreover, the HDT-150HS supports RS232 & IR control. RS232 control lets you connect a serial I/O device at your display location - an ideal solution for adding a serial touch screen interface to your remote display. While the IR extension enables you to control an IR-enabled source device, such as a Blu-ray player or TV Set-top box, from the remote location. Ideal for HD security monitoring, multimedia release system, video conference, big screen advertising,large screen splicing applications etc.

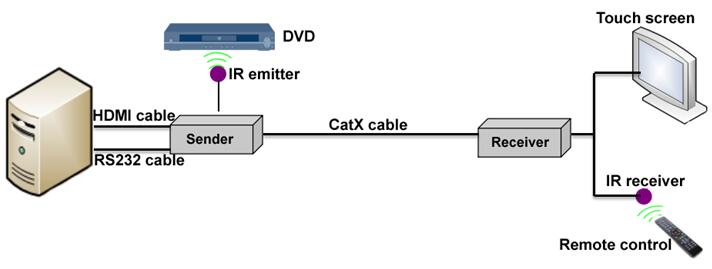

Connection diagram:
1.Strong anti-interference ability, digital video transmission with zero latency;
2.Supports video resolutions up to 4K;
3.Ensure compatibility for your remote displays with EDID pass-through;
4.IR remote control (optional): The bi-directional IR blaster allows you to control your video source device from the remote location or to control the display from the source location;
5.Bidirectional RS-232 extension(optional) : Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit.

Function

Number of input signals

Sender:1 channel (HDMI、RS232、IR)

Receiver:1 channel IR

Number of output signals

Sender:1 channel IR

Receiver:1 channel (HDMI、RS232、IR)

Transmission distance

0-150m

Video

I/O

HDMI

Video resolutions

Up to 4K

Color depth supported

24-bit/30-bit deep color/36-bit deep color

Supported audio formats

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS signal

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

RS-232

Connector

3-pin phoenix connector

Type

Bi-directional

Infrared control

Connector

3.5mm audio jack

Signals

Infrared remote control signal

Cabling

RJ-45

Cat5E/Cat6/Cat7

General

Dimensions(L×W×H)

Sender: 131mm×93mm×32mm

Receiver: 131mm×93mm×32mm

Housing enclosure

Aluminum

Colors available

Black

G.W.

1.2Kg

Power supply

Power supply

DC 12V/1A

Power consumption of sender unit

4W

Power consumption of receiver unit

4W

Operating environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (no condensation)
