Product Introduction

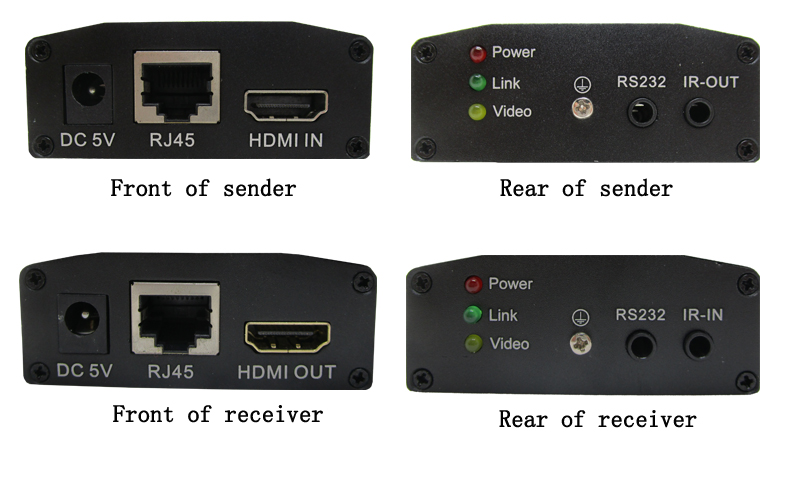

The device includes a sender (with “sender” mark) and a receiver (with “receiver” mark) , extends HDMI and IR signals to remote places. Up to 90 meter with normal 8 core cat5e/6/7 cable, reach 100 meters with high quality cables from top brands.4K*2K Up to 80 meter with normal 8 core cat5e/6/7 cable, with high quality cables from top brands.
High bandwidth, no loss, no frame delay, plays real time HD video at remote places.
Widely used in computing and surveillance systems, big screen advertisement system, video wall, bank, stock market, education system etc.
Product Feature
● Works over single network cable, save cost
● Support HDMI1.1, 1.2, 1.3, 1.4 protocols
● Support HDCP
● 10G high bandwidth, no signal loss, no frame delay, high quality video, anti electromagnetic interference.
● Support 3D
● IR function for option
Specifications
|
Signals
|
Input
|
Sender: HDMI、IR(one way each)
|
|
Output
|
Receiver：HDMI、IR(one way each)
|
|
Video Parameters
|
HDMI Version
|
HDMI1.4
|
|
HDCP Version
|
HDCP1.2
|
|
HDMI Resolution
|
1080p/1080i/720p/720i/576p/576i/480p/480i
Up to 4K×2K
|
|
Color Format
|
24bit /deep 30bit /deep 36bit
|
|
Audio Format
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
Bandwidth
|
10Gbps
|
|
I/O TMDS Signals
|
0.5-1.5Vp-p(TTL)
|
|
I/O DDC Signals
|
5Vp-p(TTL)
|
|
IR
|
Connector
|
3.5mm Audio Jack
|
|
Signals
|
IR remote control signal
|
|
Power
|
Operating Voltage
|
IN：AC110V-220V，50/60HZ
OUT：DC5V/2A-12V/1A
|
|
Power Consumption
|
Sender：5W
Receiver：5W
|
|
Physical Parameters
|
Size（LxWxH）
|
Sender:79mm×64mm×26mm
Receiver:79mm×64mm×26mm
|
|
Case
|
Aluminum
|
|
Color
|
Black
|
|
Environment
|
Storage Temperature
|
-40-80℃
|
|
Humidity
|
0-95% (No condense）
|
|
Working Temperature
|
-15℃-55℃
|
