Introduce:
This device converts HDMI to SDI signals, and transmits SDI over coaxial cable, up to 100m. Low latency(<1ms), long range (up to 100m), no loss, suited for video projects of KTV, hotel, supermarket, plaza, exhibition, etc.

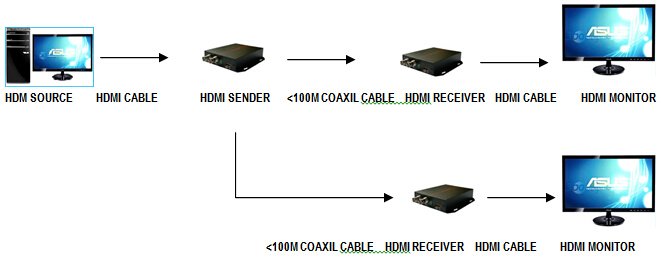

Typical Application 1
Typical Application 2
Features:
█Supports up to 1920x1080@60Hz
█Auto size, auto setting
█Output audio and video synchronously
█HDMI1.4, HDCP1.2, supports CEC
█Built in ESD protection circuit, anti static
█Plug and play, easy to install
Specifications:
|
Temperature
|
-5 to +35°C
|
|
Humidity
|
5 to 90 % RH (no condensation)
|
|
Input video level
|
0.5-1.0 volts p-p
|
|
Video formats
|
1080P/1080i/720P/480i/576i
|
|
Output video
|
SDI
|
|
Input audio
|
Support32KHZ,44.1KHZ,48KHZ,
88KHZ,96KHZ,192KHZ
|
|
SDI transmitting Range
|
3G SYWV-75-4 cable 100m
HD SYWV-75-4 cable 160m
SD SYWV-75-4 cable 260m
|
|
Input Power
|
5V DC，Positive Inside
|
|
Power
|
2.5W
|
|
Size
|
LxWxH(mm)120X97.5X25.2
|

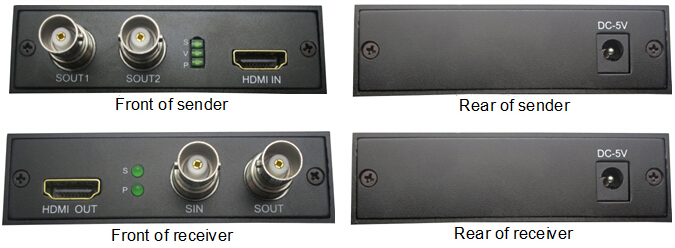

Front drawing:
