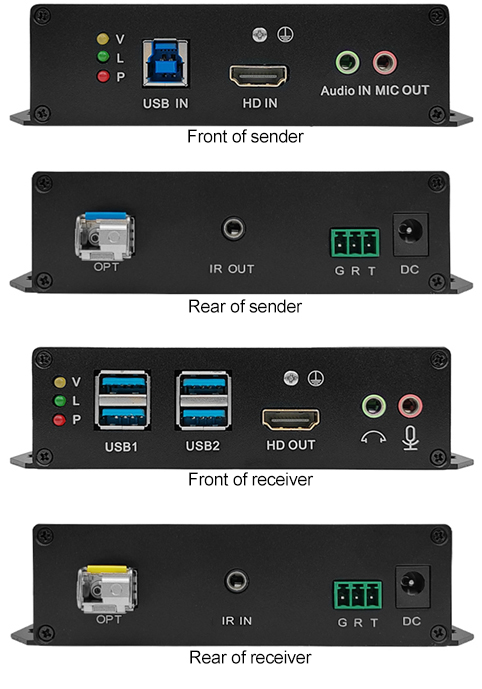

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
The UVO-3HU3AS HDMI KVM extender kit extends UHD 4K HDMI signals to the remote end through single SM/MM optical fiber cable at a distance of up to 20km. Moreover, it supports RS-232 & IR control. The IR extension enables you to control an IR-enabled source device, such as a DVD or TV Set-top box, from the remote location. While RS-232 control lets you connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.
Ideal for HD monitoring, multimedia release, video conference, multimedia classrooms, centralized computer management, outdoor advertising, online education, large screen splicing applications, etc.

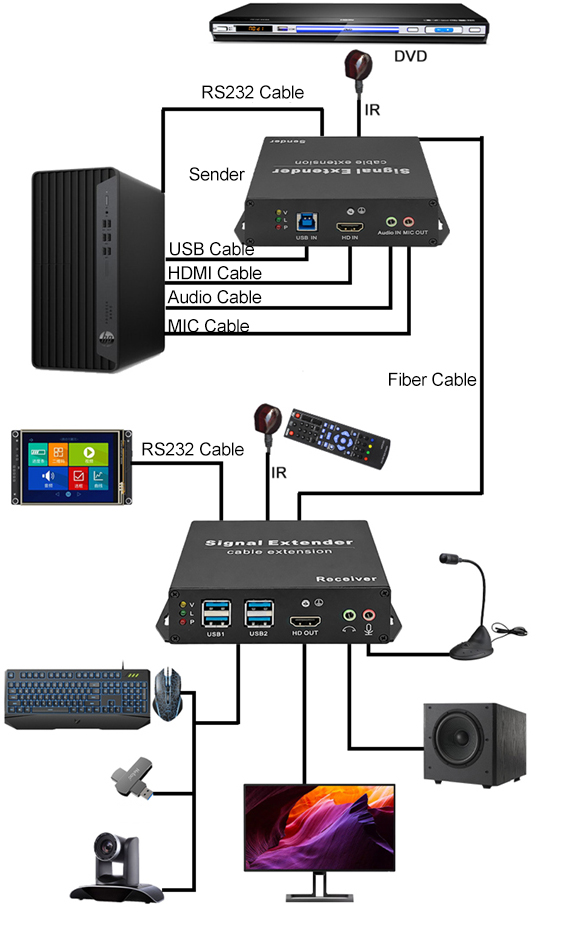

Connection diagram:
1.Digital transmission at zero latency, crystal clear image with strong anti-interference ability;
2.Extends HDMI signals up to 20km via a single-mode fiber cable or up to 300m/500m via a multi-mode fiber cable;
3.Supports video resolutions up to 4K×2K;
4.HDMI 1.4 compliant, 3D video supported;
5.Ensure compatibility for your remote displays with EDID pass-through;
6.The built-in 4-port USB 3.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for USB keyboards and mice, HD webcams, mobile phone charging and data transferring, portable storage devices, touch screens, etc. The high-current design provides perfect stability, eliminates intermittent signal loss;
7.Features 3.5mm jacks on both the Sender and Receiver for individual 2 channel audio support;
8.IR control allows your HDMI source device to recognize remote commands, you can control the HDMI source device from the remote location;
9.Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.;
10.Audio, IR & RS-232 control functions optional;
11.Plug and play installation, no software or driver needed.
|
Function
|
Input signals
|
Sender：1 channel (HDMI, USB, RS232, AUDIO)
Receiver：1 channel (MIC, IR)
|
|
Output signals
|
Sender：1 channel (MIC, IR)
Receiver：1 channel (HDMI, RS232, AUDIO),
4 channel USB
|
|
Transmission distance
|
SM fiber cable：Up to 20km
MM fiber cable：Up to 300m/500m (depends on your cable’s quality)
|
|
Video
|
I/O
|
HDMI
|
|
HDMI version
|
HDMI 1.4
|
|
HDCP version
|
HDCP 1.2
|
|
Video resolutions
|
Up to 4K×2K@30Hz
|
|
Color depth supported
|
24-bit/ 30-bit deep color/ 36-bit deep color
|
|
Supported audio formats
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
TMDS
|
0.5-1.5Vp-p(TTL)
|
|
DDC
|
5Vp-p(TTL)
|
|
USB
|
Connector
|
Sender：Type-B
Receiver：Type-A
|
|
Protocol
|
USB 3.0
|
|
Audio
|
Connector
|
3.5mm stereo audio jack
|
|
RS-232 serial
|
Connector
|
3-pin phoenix connector
|
|
Type
|
Bi-directional
|
|
IR control
|
Connector
|
3.5mm jack
|
|
Signals
|
Infrared control signal
|
|
Cabling
|
Type
|
SM/MM fiber cable, LC connector
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
General
|
Dimensions (L × W × H)
|
Sender: 131mm×93mm×32mm
Receiver: 131mm×93mm×32mm
|
|
Housing enclosure
|
Aluminum
|
|
Colors available
|
Black
|
|
Power
|
Power supply
|
DC 12V/1.5-2A
|
|
Power consumption
|
Sender: 4W
Receiver: 4W
|
|
Operating environment
|
Working Temperature
|
-15℃ ~ 55℃ (-40℉ ~ 176℉)
|
|
Storage temperature
|
-40℃ ~ 80℃ (5℉ ~131℉)
|
|
Relative humidity
|
0-95% (No condensation）
|
