This product is a pair of complete sets of equipment, one of which
is a sender and one is a receiver; the sender is marked with the word
"Sender" and the receiver is marked with the word
"Receiver".It can extend HDMI video, audio, microphone, USB to the
remote end through a single network cable or optical fiber, and can also
transmit RS232 serial port signals for long-distance transmission with touch
screen, pan/tilt, electronic whiteboard and other devices. The infrared signal
can be used for infrared remote control of devices such as DVDs and set-top
boxes. The farthest transmission distance of the network cable is 120 meters,
and the longest transmission distance of the fiber is 20 kilometers. The user
can control the computer at the remote end, and the image effect is clear and
natural, and the resolution is up to 4K×2K.
Products can be used in military command and control, public security
command and control, traffic police traffic management, energy and power supply
industry, government departments, medical systems, commercial displays,
multimedia functions, utilities and other fields.

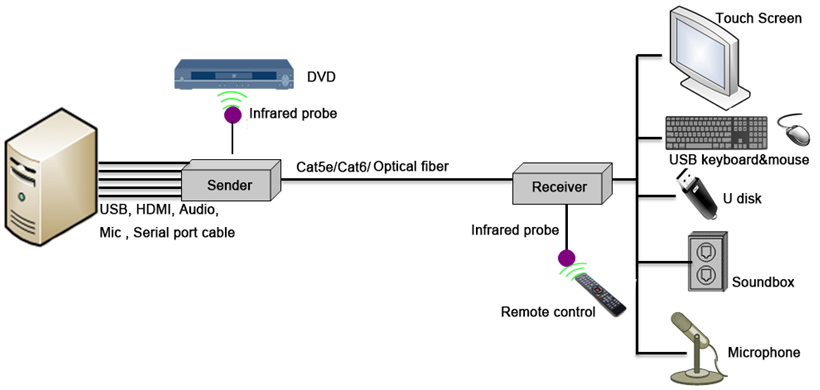

Connection Diagram:
1. It can support transmission through a single network cable, and can also support transmission through a single-core optical fiber;
2. Digital video transmission with zero latency, clear image and strong anti-interference ability;
3. Support multiple resolutions up to 4K×2K@30HZ;
4. Support HDMI1.4, support 3D;
5. Support USB2.0 protocol, USB device compatibility is good, up to 4 USB interfaces, support USB mouse and keyboard, HD camera, mobile phone charging and copying data, mobile storage device, touch screen, etc., high current design, will not drop For user convenience;
6. Support bidirectional transmission of audio;
7. Support bidirectional transmission of serial port;
8. Support transmission through Gigabit LAN;
9. Infrared, serial port, audio function (optional).
