UVO-9HUAS(HDMI+USB2.0+Two Way Audio+Two Way RS232+IR)High Speed Fiber/Cat5e/Cat6 Extend 20KM
UVO-9HUAS(HDMI+USB2.0+Two Way Audio+Two Way RS232+IR)High Speed Fiber/Cat5e/Cat6 Extend 20KM
Share to:

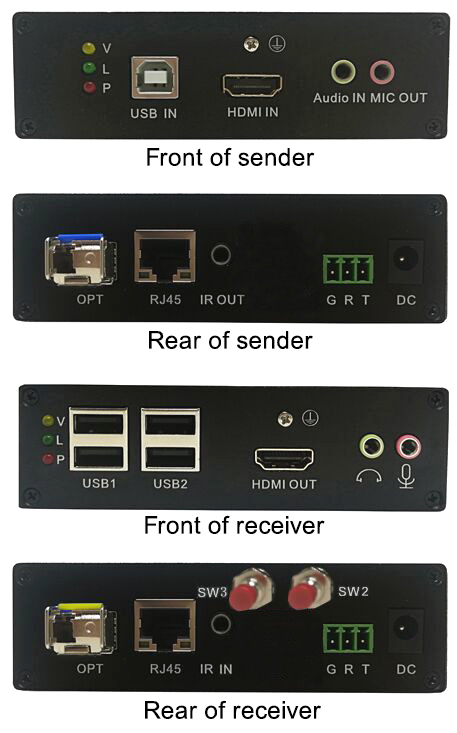

This product is a pair of complete sets of equipment, one of which is a sender and one is a receiver; the sender is marked with the word "Sender" and the receiver is marked with the word "Receiver".It can extend HDMI video, independent audio, microphone, USB to the remote end through a single network cable, and can also transmit RS232 serial port signals for long-distance transmission with touch screen, pan tilt zoom, electronic whiteboard, etc., IR infrared signal Infrared remote control of devices such as DVDs, set-top boxes, etc. The farthest network cable transmission distance is 120 meters,and the farthest optical cable transmission distance is 20km, the user can control the computer at the remote end, the image effect is clear and natural, and the resolution is up to 4K×2K.

Products can be used in security monitoring, multimedia information publishing, video conferencing, multimedia classrooms, centralized management of hosts, large-screen advertising, education systems, splicing systems, etc.

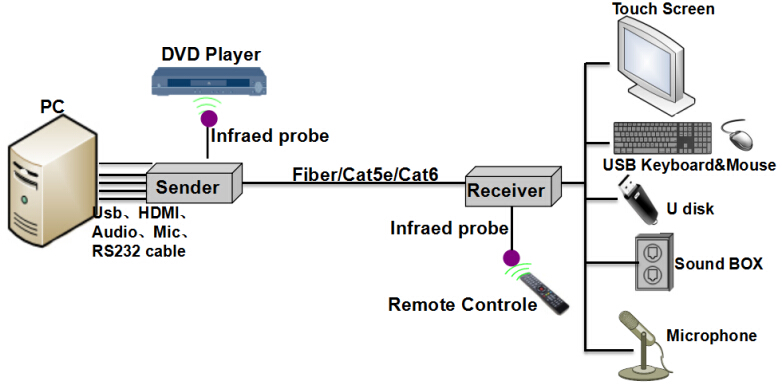

One to one connection diagram:

One to many connection diagram:


1. Digital video transmission with zero latency, clear image and strong anti-interference ability;

2. Support multiple resolutions up to 4K×2K@30HZ;

3. Support HDMI1.4, support 3D;

4. Support reading EDID, compatible with different brands of display devices and able to lock screen

5. Support USB2.0 protocol, USB device compatibility is good, up to 4 USB interfaces, support USB mouse and keyboard, HD camera, mobile phone charging and copying data, mobile storage device, touch screen, etc. High current design, will not drop the line, convenient for users;

6. Support bidirectional transmission of audio;

7.Support bidirectional transmission of RS232;

8. Support transmission through Gigabit LAN;

9. Access to Gigabit switches for one-to-many transmission;

10. Infrared, serial port, audio function (optional).

Function

Number of input signal

Sender1CH(HDMIUSBRS232AUDIO)

Receiver1CH(MICIR

Number of output signal

Sender1CH(MICIR)

Receiver1CH(HDMIRS232AUDIO)4CH USB

Transmission distance

Cable directly connected0-125m

Video transmission performance and interface part

Video input/output interface

HDMI

Support HDMI version

HDMI1.4

Support HDCP version

HDCP1.2

HDMI Resolution

Max support 4K×2K@30HZ

Support video color format

24bit/deep color 30bit/deep color 36bit

Audio format support

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Input and output TMDS signals

0.5-1.5Vp-p(TTL)

Input/output DDC signal

5Vp-p(TTL)

USB

Interface

SenderB type

ReceiverA type

Protocol

Support USB2.0

Video

Interface

3.5mm Audio socket

Serial

Interface

Industrial terminal

model

Two-way transmission

Infrared remote control performance and interface

Remote control interface

3.5mm Audio socket

Remote control interface signal

Infrared control signal

Internet access

RJ-45

Cat5E/Cat6 (use shielded cable)

Attribute

sizeL×W×H

Sender:  131mm×93mm×32mm
Receiver:  131mm×93mm×32mm

The shell

Aluminum

Color

Black

GW

1.2Kg

Power supply

Voltage range

DC9V-12V/2A

Sender consumption

3W

Receiver consumption

3W

Operating environment

Working Temperature

-15-55

Storage temperature

-40-80

Relative humidity

0-95% (No condensation
