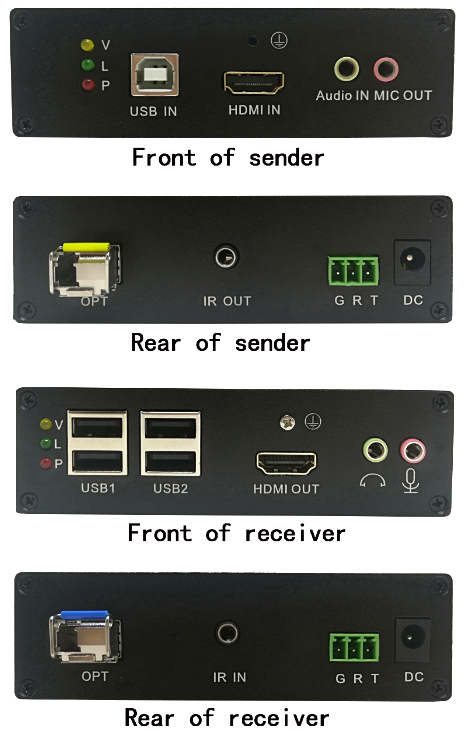

The product is composed of transmitter(marked with sender)and receiver(marked with receiver),can extend the HDMI video signal, Stereo audio, Mic, USB signal to the far end through one single fiber optical cable.It can also transmit RS232 serial port signals for long-distance transmission with touch screen, pan/tilt, electronic whiteboard and other devices. IR IR signals can be used for infrared remote control of DVDs, set-top boxes and other devices. The farthest transmission distance is 20 kilometers, the user can control the computer at the remote end, the image effect is clear and natural, and the resolution is up to 4K×2K.
Products can be used in security monitoring, multimedia information release, video conferencing, multimedia classrooms, centralized management of hosts, large-screen advertising, education systems, splicing systems, etc.

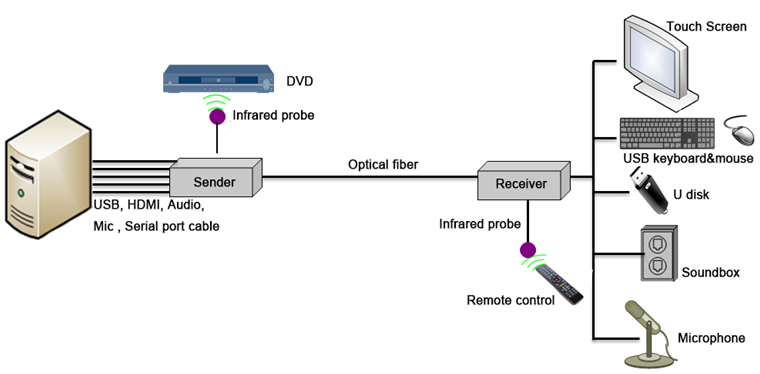

Connection Diagram:
1. Digital video transmission with zero latency, clear image and strong anti-interference ability;
2. Support multiple
resolutions, maximum 4K×2K@30HZ;
3. Support
HDMI1.4, support 3D;
4. Support USB2.0
protocol, excellent USB device compatibility, up to 4 USB interfaces, support
USB mouse and keyboard, HD camera, mobile phone charging and copying data,
mobile storage device, touch screen, etc.
5. Support
bidirectional transmission of audio;
6. Support
bidirectional transmission of serial port;
7. Infrared,
serial port, audio function (optional).
