This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
The UVO-5HUAS extends uncompressed, UHD 4K HDMI signals to the remote end through single SM/MM optical fiber at a distance of up to 20km. Moreover, it supports RS-232 & IR control. The IR extension enables you to control an IR-enabled source device, such as a Blu-ray player or TV Set-top box, from the remote location. While RS232 control lets you connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.
Ideal for HD monitoring, multi-media information release system, video conference, multimedia classrooms, PC centralized management , large-screen advertising, education systems, large screen splicing applications etc.

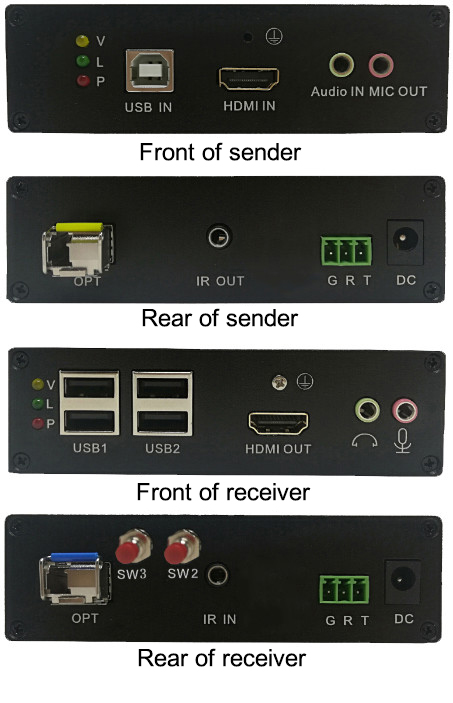

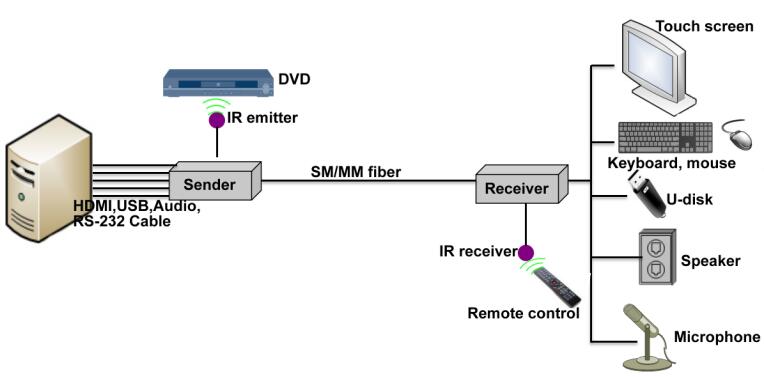

Connection diagram:
1. This HDMI KVM extender transmits uncompressed digital HDMI signals with high resolution and strong anti-interference ability;
2. Supports video resolutions up to 4K×2K@30Hz;
3. HDMI1.4 compliant, 3D video is supported;
4. Able to read the EDID information, ensuring compatibility for your remote displays and being able to lock screen;
5. The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for USB keyboards and mice, HD webcam, charging and data transferring of your mobile phones, portable storage devices, touch screen, etc. High-current design provides perfect stability, eliminates intermittent signal loss or disconnected HDMI cables;
6. Features 3.5mm audio jacks on both the Sender and Receiver units for stereo audio speaker and microphone connection;
7. IR control allows your HDMI source device to recognize remote commands, you can control the HDMI source device from the remote location
8. Bidirectional RS-232 extension;
9. Audio, IR, RS-232 functions optional
|
Function
|
Number of input signals
|
Sender: 1CH(HDMI、USB、RS232、AUDIO)
Receiver: 1CH(MIC、IR）
|
|
Number of output signals
|
Sender: 1CH(MIC、IR)
Receiver: 1CH(HDMI、RS232、AUDIO)，4CH USB
|
|
Transmission distance
|
Single-mode fiber：0-20km
Multi-mode fiber：0-2km
|
|
Video
|
I/O
|
HDMI
|
|
HDMI version
|
HDMI1.4
|
|
HDCP compliant
|
HDCP 1.2
|
|
Video Resolutions
|
Up to 3840K×2160@30Hz
|
|
Supported Color Depth
|
24-bit/30-bit deep color/36-bit deep color
|
|
Audio formats
|
DTS/HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
TMDS
|
0.5-1.5Vp-p(TTL)
|
|
DDC
|
5Vp-p(TTL)
|
|
USB
|
Connectors
|
Sender：USB Type-B
Receiver：USB Type-A
|
|
Protocol
|
USB2.0
|
|
Audio
|
Connector
|
3.5mm stereo audio jack
|
|
RS-232 serial
|
Connector
|
3-pin phoenix connector
|
|
Type
|
Bi-directional
|
|
Infrared control
|
Connector
|
3.5mm audio jack
|
|
Signal
|
Infrared control signals
|
|
Cabling
|
Type
|
SM/MM fiber, LC connector
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
General
|
Dimensions（L×W×H）
|
Sender : 131mm×93mm×32mm
Receiver: 131mm×93mm×32mm
|
|
Housing enclosure
|
Aluminum
|
|
Colors available
|
Black
|
|
Power supply
|
Voltage
|
DC 12V/1.5-2A
|
|
Power consumption of the Sender
|
4W
|
|
Power consumption of the Receiver
|
4W
|
|
Operating environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% RH (no condensation)
|
