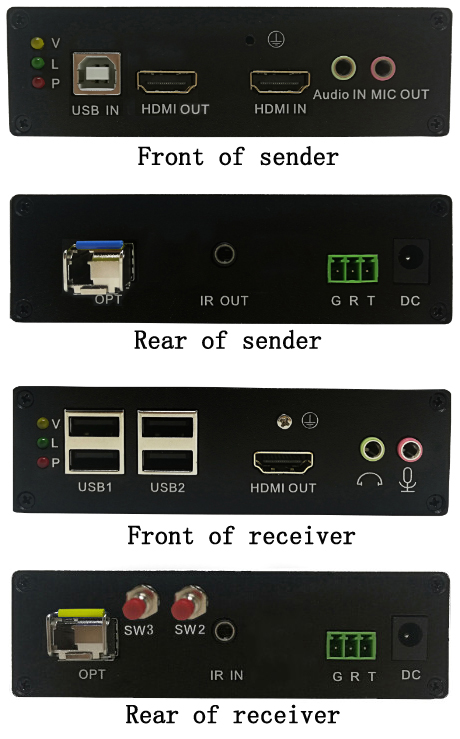

The kit comes as a pair, with one Sender unit(marked
with sender) and one Receiver unit(marked with receiver).
This
KVM extender extends Full HD resolution 4Kx2K HDMI signals from Sender to the Receiver
unit via single LC connector optical fiber cable at a distance of up to 20km. It features a local HDMI output on
the Sender for local display support enabling you to see what you are extending.
Moreover, the UVOL-125UAS supports RS232 &
IR control. RS232 control lets you connect a serial I/O device at your display
location - an ideal solution for adding a serial touch screen interface to your
remote display. While the IR extension enables you to control an IR-enabled
source device, such as a Blu-ray player or TV Set-top box.
Ideal for HD security monitoring, multimedia release
system, video conference, multi-media classrooms , PC centralized management system, large screen advertising, screen splicing applications etc.

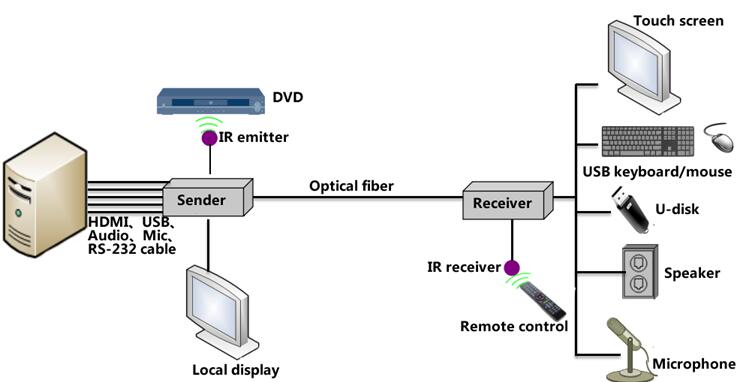

Connection Diagram:
1. Digital video transmission with zero latency, and 100% true
picture at destination even over long distance;
2. It
features a local HDMI output on the sender for local display support enabling
you to see what you are extending;
3. Able to read and lock the EDID information, ensure compatibility for
your remote displays
4. Supports
video resolutions up to 4K×2K@30Hz
5. HDMI 1.4
compliant, 3D video supported
6. The extender features a built-in 4-port USB
2.0 hub that also lets you connect four remote USB peripheral devices at your
display location.
7. Features 3.5mm jacks on both the transmitter and receiver for 2 channel
audio support
8. Bi-directional
RS-232 extension
9. Direct 1-to-1 connection and 1-to-many connection through Gigabit fiber switch, a transmitter to multiple
receivers, you can accomplish the extender and splitter function
10. IR
control,RS-232 serial,audio functions optional
