DVI lossless fiber extender--Shenzhen Langheng Technology Co., Ltd

Location： Home > Products

Products

TVO-3D(DVI Uncompressed 20KM)

Share to：

The kit comes as a pair, with one sender unit and one receiver unit.
This TVO-3D DVI extender allows you to transmit 4Kx2K@30Hz video to distances up to 20km using a single-mode fiber optic or up to 2km using a multi-mode fiber optic.
Ideal for video conference, big screen advertising,large screen splicing system, multimedia release system, government departments and hospital applications etc.

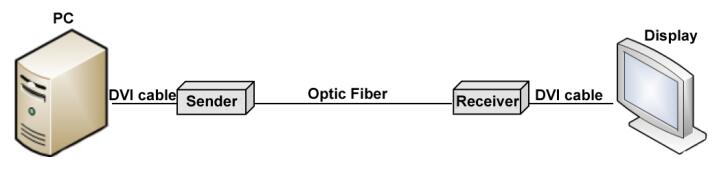

Connection diagram:

1. Extends DVI signals up to 20km via single fiber optic

2. Uncompressed audio and video at near zero latency

3. Supports video resolutions up to 4Kx2K@30Hz

4. 3D video supported

5. Ensure compatibility for your remote displays with EDID pass-through

Function	Number of input signals	Sender：1channel DVI
	Number of output signals	Receiver：1channel DVI
	Transmission distance	Single mode fiber optic ：0-20km Multi-mode fiber optic：0-2km
Video	I/O	DVI-I（supports DVI-D signal only）
	HDCP	HDCP1.2
	Video resolutions	Up to 4K×2K@30HZ
Cabling	Type	SM or MM fiber optic, LC connector
Cabling	Wavelength	850nm/1310nm/1550nm
General	Dimensions (LxWxH)	Sender: 131mm×93mm×32mm Receiver: 131mm×93mm×32mm
	Housing	Aluminum enclosure
	Colors available	Black
	G.W.	1.2Kg
Power supply	Voltage	DC9V-12V/1A
	Power consumption of sender	3W
	Power consumption of receiver	3W
Operating environment	Working temperature	-15℃-55℃
	Storage temperature	-40-80℃
	Relative humidity	0-95% (no condensation）
