Item Introduction
The product consists of a sender and a receiver which showed on the case,it can expand the signal DVI/RS232 to somewhere remote by Single / dual-core optical fiber,the high-speed Optical FPGA technology has been used that converting DVI signal into an optical fiber signal transmission 3G resolution up to 1920*1200@60Hz, max distance 10KM.Widely used in a variety of industries and areas of security monitoring, hospitals, banks, splicing systems, multimedia information release system.
Model list
PN
|
optical fiber
|
Transmission distance
|
Highest resolution
|
EDID reading
|
RS232 transmission
|
EVO-3DS
|
Single-mode Single core
|
10KM
|
1080P
|
Manually
|
unidirectional
|
EVO-4DS
|
multi-mode single core
|
500M
|
1080P
|
Manually
|
unidirectional
|
EVO-3 DSD
|
Single-mode
Single core
|
10KM
|
1080P
|
Manually
|
bilateral
|
EVO-4 DSD
|
Multi-mode
Single core
|
500m
|
1080P
|
Manually
|
bilateral
|
EVO-3DSK
|
Single-mode Single core
|
10KM
|
1920*1200@60HZ
|
Manually
|
unidirectional
|
EVO-4DSK
|
multi-mode single core
|
500M
|
1920*1200@60HZ
|
Manually
|
unidirectional
|
EVO-3 DSDK
|
Single-mode
Single core
|
10KM
|
1920*1200@60HZ
|
Manually
|
bilateral
|
EVO-4 DSDK
|
Multi-mode
Single core
|
500m
|
1920*1200@60HZ
|
Manually
|
bilateral
|
Product features
◆ All-digital, uncompressed HD fiber-optic transmission technology
◆ Using HDMI 1.3b protocol
◆ Pluggable Optical Module
◆ Support reading EDID
◆ Resolution up to 1920x1200@60Hz
◆ Supports single mode / multimode fiber transmission
◆ Simple Installation, plug and play
Technical Parameters
function
|
Number of input signals
|
one channel(DVI、RS232)
|
Number of output signal
|
one channel(DVI、RS232)
|
Transmission distance
|
500m multimode/10KM single mode
|
video transmission performance
and interface section
|
Video input interface
|
Sender : DVI-I (only support DVI-D)
|
Video output interface
|
Receiver:DVI-I (only support DVI-D)
|
resolution
|
1920*1200@60HZ
1920*1080@60HZ
1680*1050@60HZ
1440*900@60HZ
1360*768@60HZ
1280*720@60HZ
1280*1024@60HZ
1280*768@60HZ
1024*768@60HZ
800*600@60HZ等
|
Optical portion
|
Optical input and output interface
|
Single/multimode LC type
|
Transmission wavelength
|
1310nm/1550nm
|
Power supply section
|
Adaptation voltage range
|
DC9V/1A
|
power dissipation
|
sender:6W
receiver:6W
|
Attributes
|
Size(L*W*H)
|
sender:116mm*110mm*25mm
receiver:116mm*110mm*25mm
|
case
|
Aluminum
|
color
|
black
|
Operating environment
|
storage temperature
|
-40-80℃
|
humidity
|
0-95% ( Non-condensing)
|
Operating temperature
|
-15℃-55℃
|

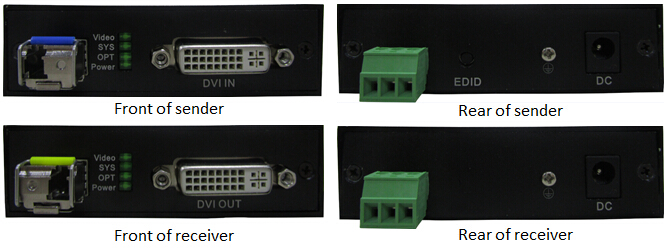

Product Interface
