Introduce:

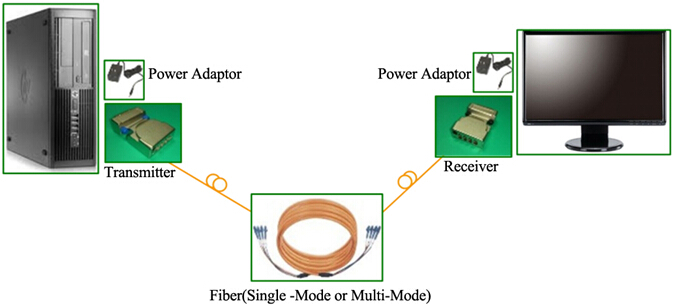

DVI to fiber converter is designed for cases of long distance DVI Transmission; it works with 4 core fiber, compatible with both single mode (SM) and multi mode (MM) fiber.
It can work with all kinds of monitors because of the built-in EDID learning technology. Meanwhile, all LED indicators and ports are placed in front panel, very convenient for installation.
Features:
1，Transmits uncompressed DVI-D signals over 4 core LC MM fiber.
2，Supports DVI & HDMI, maximum distance is 500m when works with OM3 mulitimode fiber, supports 1080P, max resolution is 1920x1200@60Hz
3,Built-in Vitual DDC and intelligent EDID management moudule in the sender, need not connect to monitor for setting.
4,Split type design, fiber is removable from sender or receiver
5,Compact design, plug and play, the sender can be powered by host
6,Alumimum case, low power consumption, good heat sinking, designed for 7x24hr working condition.
7,LED indictors shows all status of sender and receiver, convenient to check and eliminate problems.
8,Class 1 laster devices, no harm to eyes
9,Compatible with ROHS
10,Not support HDCP
Specifications:
|
Model
|
DVO-5D3 T
|
DVO-5D3 R
|
|
Input/Output
|
1×DVI-D（18+1）
|
|
Fiber Port
|
4×LC
|
|
Resolution
|
Max 1920*1200@60Hz， HDTV 1080p@60Hz
|
|
DDC Protocol
|
EDID Learning
|
|
Front Panel
|
3×LEDs 1×EDID Button
|
3×LEDs
|
|
Distance
|
500m（MM OM3 fiber）
1500m（SM G.652D fiber）
|
|
Condition
|
Operating Temperature：0～50℃，Storage Temperature：-20～70℃
|
|
Power
|
DC 5V 1A
|
|
Size
|
53.9mm×39.0mm×14.6mm
|
Front drawing:
