FVO-3DAS(DVI&Audio&RS232 Optical fiber transmission 10KM)
FVO-3DAS(DVI&Audio&RS232 Optical fiber transmission 10KM)
Share to:
       This product is composed of transmitter (marked with Sender) and receiver (marked with  Receiver), which can extend the host's DVI, audio and serial signals to the remote via single-core fiber. The uncompressed optical transceiver adopts high-speed FPGA technology, convert DVI signal into 3G optical fiber signal transmission, the highest resolution can reach 1920*1200@60Hz, the maximum transmission distance up to 10 km. Can be widely used in security monitoring, hospitals, banks, splicing systems, multimedia information distribution system and other industries and fields.

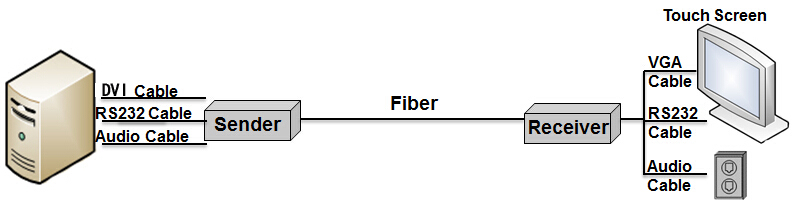

Application Map

Model list

Model

Optical fiber

Transmission distance

Max resolution

EDID read

RS232 transmission

FVO-3DAS

Single mode single core

10km

1080P

Manual

unidirectional

FVO-4DAS

Multimode single core

500m

1080P

Manual

unidirectional

FVO-3 DASD

Single mode single core

10km

1080P

Manual

Bidirectional

FVO-4 DASD

Multimode single core

500m

1080P

Manual

Bidirectional

FVO-3DASK

Single mode single core

10km

1920*1200@60HZ

Manual

unidirectional

FVO-4DASK

Multimode single core

500m

1920*1200@60HZ

Manual

unidirectional

FVO-3 DASDK

Single mode single core

10km

1920*1200@60HZ

Manual

Bidirectional

FVO-4 DASDK

Multimode single core

500m

1920*1200@60HZ

Manual

Bidirectional

1.All-digital, uncompressed HD optical fiber transmission technology
2.Optical module pluggable
3.The highest resolution 1920x1200@60Hz
4.Support read EDID
5..Support single mode / multimode fiber transmission
6.Support access optical splitter transmission
7.Installation is simple, plug and play.

Function

Number of input signal

1CH(DVI、Audio、RS232)

Number of output signal

1CH(DVI、Audio、RS232)

Transmission distance

500M(MM)/10KM(SM)

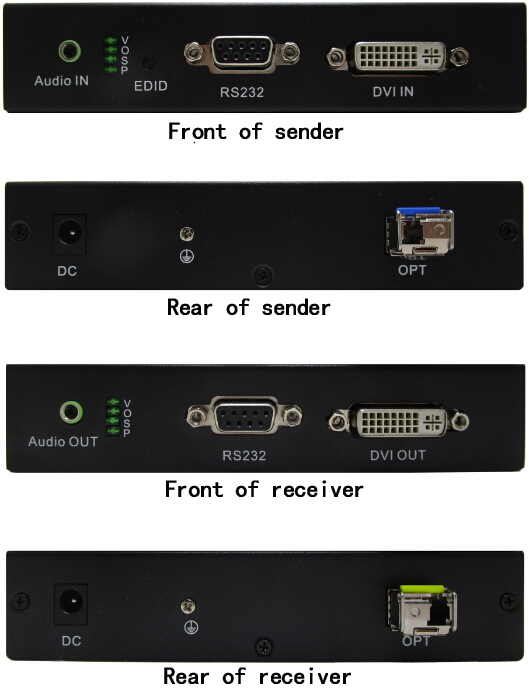

Video interface and performance

Video input interface

Sender:DVI-I(Only supports DVI-D signal)

Video output interface

Receiver:DVI-I(Only supports DVI-D signal)

Resolution

1920*1200@60HZ
1920*1080@60HZ
1680*1050@60HZ
1440*900@60HZ
1360*768@60HZ
1280*720@60HZ
1280*1024@60HZ
1280*768@60HZ
1024*768@60HZ
800*600@60HZ

Audio

Interface

3.5mm stereo

RS232

Interface

DB-9

Optical part

The optical input and output interface

Single/Multi-mode  LC type

Transmission wavelength

1310nm/1550nm

Power supply

Adaptable voltage

DC9V/1A

Power consumption

Sender:6W
Receiver:6W

Attribute

Overall dimensions

Sender:141mm×109mm×30mm
Receiver:141mm×109mm×30mm

Case

Iron

Color

Black

Operating environment

Storage temperature

-40-80℃

Humidity

0-95% (No condensation)

Working Temperature

-15℃-55℃
