The kit comes as a pair, with one sender unit and one receiver unit.
This HDMI extender supports HDMI,USB,audio signals to be extended up to 20km at 4KX2K resolution over single fiber optic. Features a local HDMI output on the sender for local display support enabling you to see what you are extending.
It can also transfer RS-232 in both directions,allowing you to connect serial devices such as touch screens, pan/tilt cameras and electronic whiteboard.IR support, allows user to control video sources like DVD, set-up boxes from the display location with IR.
Ideal for HD security monitoring,multimedia release system, video conference,multimedia classroom,centralized computer control system,big screen advertising, education systems, large screen splicing system etc.

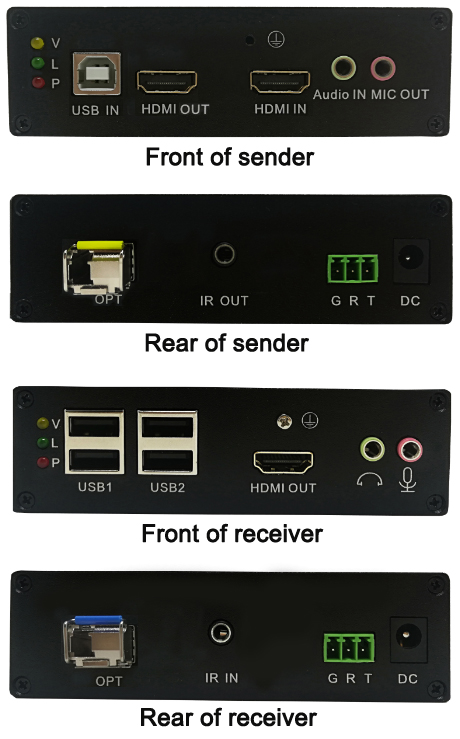

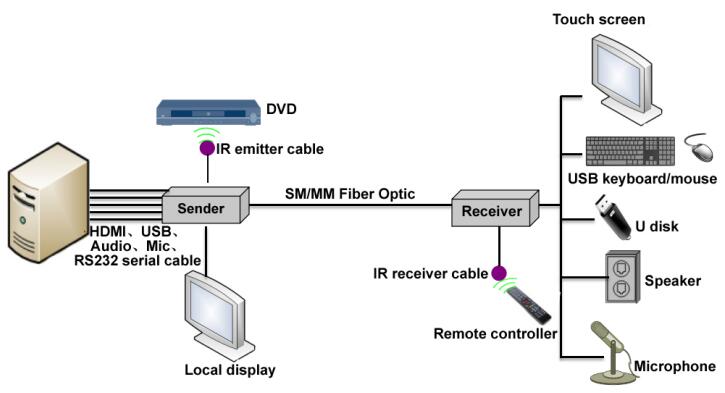

Connection Diagram:
1.Digital video transmission with zero latency, and 100% true picture at destination even over long distance
2.It features a local HDMI output on the sender for local display support enabling you to see what you are extending
3.Supports video resolutions up to 4K×2K@30HZ；
4.HDMI1.4 compliant,3D video supported；
5.Ensure compatibility for your remote displays with EDID pass-through；
6. The receiver unit has a built in 4 port USB2.0 hub to enable a complete desktop to be located remotely, including a keyboard, monitor, mouse, disk drive, flash memory stick, webcam, and any other device that would normally be plugged into your computer's USB port.
7.Features 3.5mm jacks on both the transmitter and receiver for stereo audio support
8.Bidirectional RS–232 Extension
9.IR,RS232 serial,audio functions optional
|
Function
|
Number of input signals
|
Sender：1channel(HDMI、USB、RS232、AUDIO)
Receiver：1channel(MIC、IR）
|
|
Number of output signals
|
Sender：1channel(HDMI、MIC、IR)
Receiver：1channel(HDMI、RS232、AUDIO)，4 channel USB
|
|
Transmission distance
|
Using single mode(SM)fiber：0-20km
Using multi-mode(MM) fiber: 0-2km
|
|
Video
|
I/O
|
HDMI
|
|
HDMI version
|
HDMI1.4
|
|
HDCP
|
HDCP1.2
|
|
Max. Video resolutions
|
Up to 4K×2K@30HZ
|
|
Color depth supported
|
24-bit/30-bit deep color/36-bit deep color
|
|
Supported audio formats
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
TMDS
|
0.5-1.5Vp-p(TTL)
|
|
DDC signal voltage
|
5Vp-p(TTL)
|
|
USB
|
Connectors
|
Sender：Type B
Receiver：Type A
|
|
Protocol
|
USB2.0
|
|
Audio
|
Connector
|
3.5mm stereo audio jack
|
|
RS232
|
Connector
|
3-pin phoenix contact
|
|
Type
|
Bidirectional
|
|
Infrared remote control
|
Connector
|
3.5mm audio jack
|
|
Remote control interface signal
|
Infrared remote control signal
|
|
Cabling
|
Connector
|
SM/MM fiber, LC connector
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
General
|
Dimension（L×W×H）
|
Sender: 131mm×93mm×32mm
Receiver: 131mm×93mm×32mm
|
|
Enclosure type
|
Iron
|
|
Color
|
Black
|
|
G.W.
|
1Kg
|
|
Power supply
|
Voltage
|
DC12V/1.5-2A
|
|
Power consumption of sender
|
3W
|
|
Power consumption of receiver
|
3W
|
|
Operating environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (no condensation）
|
