Product Introduction:

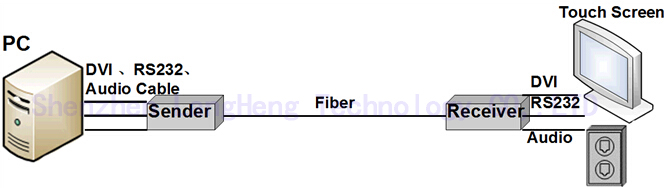

The device includes a sender and a receiver, transmits uncompressed DVI/HDMI, audio, RS232 signal to remote monitor over a single mode or multi mode fiber, adopts high bandwidth uncompress signal transmission technology, so user can see the real-time video far away.
Support DVI/HDMI video audio signal transmission at real-time, max distance 500meters (multi mode)/10KM (single mode).
Widely used in video conference system, multimedia system, medical system, commercial presentation system, and public utilities etc.
Model list:
|
Model
|
Fiber Type
|
Distance
|
Supporting Signals
|
Resolution
|
|
DVO-3DAL
|
MM/SM
|
500m/10km
|
DVI/HDMI、Audio
|
1080P
|
|
DVO-3DASL
|
MM/SM
|
500m/10km
|
DVI/HDMI、Audio、RS232
|
1080P
|
|
DVO-3DAH
|
MM/SM
|
500m/10km
|
DVI/HDMI、Audio
|
1920×1200@60HZ
|
|
DVO-3DASH
|
MM/SM
|
500m/10km
|
DVI/HDMI、Audio、RS232
|
1920×1200@60HZ
|
Product Feature:
1, Uncompress digital signal transmission technology, no time delay
2. Supports 1080P, up to 1920x1200@60Hz
3, Supports hot plug, plug and play
4, Supports HDMI with a DVI to HDMI cable
5. A sender can work with many receivers via an optical splitter
6, RS232 is optional
Product Specification:
|
Function
|
Number of input signal
|
1channel (DVI、Audio、RS232)
|
|
Number of output signal
|
1channel (DVI、Audio、RS232)
|
|
Extending distance
|
500m(multi mode)/10KM(single mode)
|
|
Video Specification
|
Video Input
|
DVI-I (supports DVI-D)
|
|
Video Output
|
DVI-I (supports DVI-D only)
|
|
Resolution
|
1080p/1920x1200@60Hz max
|
|
DVI Protocol
|
DVI1.0
|
|
Audio Specification
|
Audio Jack
|
3.5mm Stereo Jack
|
|
Audio Frequency
|
10Hz – 20KHz
|
|
RS232 Specification
|
RS232 Connector
|
DB-9 female
|
|
Speed
|
115Kbps Max
|
|
Direction
|
Uni directional
|
|
Optical
|
Optical input/output
|
Single/Multi mode LC connector
|
|
Transmission wave length
|
1550nm/1310nm
|
|
Power
|
Voltage
|
5V/3A DC
|
|
Power consumption
|
Sender: <3W
Receiver: <3W
|
|
Physical parameters
|
Size（L× W×H）
|
Sender: 128mm×131mm×32mm
Receiver: 128mm×131mm×32mm
|
|
Housing
|
Aluminum
|
|
Color
|
Black
|
|
Net weight
|
0.60kg
|
|
Environment
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (Non-condensing)
|
|
Working temperature
|
-15℃-55℃
|
Front drawing:
