The device includes a sender and a receiver, which can transmit HDMI, IR signal transmission over TCP/IP protocol through single network cable to a remote location.It support HDMI/DVI signal transmission at max 1920 * 1080 @ 60Hz, max distance per single pair can reach 170m, and extend 100m more after connecting network switch, and multiple cascade operation is available.
The product can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
One-to-One direct connection diagram:

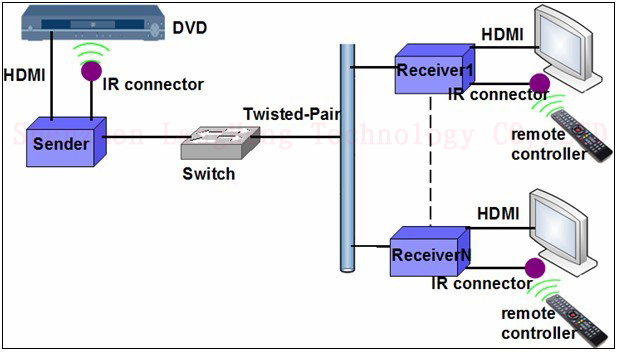

One-to-Many connection diagram(1):
One-to-Many connection diagram(2):
1, Support 1920×1080@60Hz
2, One-to-one direct connection can reach 170m, and can extend 100m more after connecting network switch.
3, Single network transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
4, Support DVI/HDMI interface
5, Support TCP/IP protocol, adding network switch not even can extend transmitting distance, but also can work as a video distributor.
6, With IR function for option
|
Video
|
I/O connector
|
HDMI, IR, RJ-45
|
|
HDMI version
|
HDMI1.1 1.2 1.3
|
|
HDCP
|
HDCP1.2
|
|
HDMI resolution
|
1080p/1080i/720p/720i/576p/576i/480p/480i
|
|
Video color format
|
24bit/deep color 30bit/deep color 36bit
|
|
Audio format
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
TMDS
|
0.5-1.5Vp-p(TTL)
|
|
DDC
|
5Vp-p(TTL)
|
|
Physical
|
Size (L× W ×H)
|

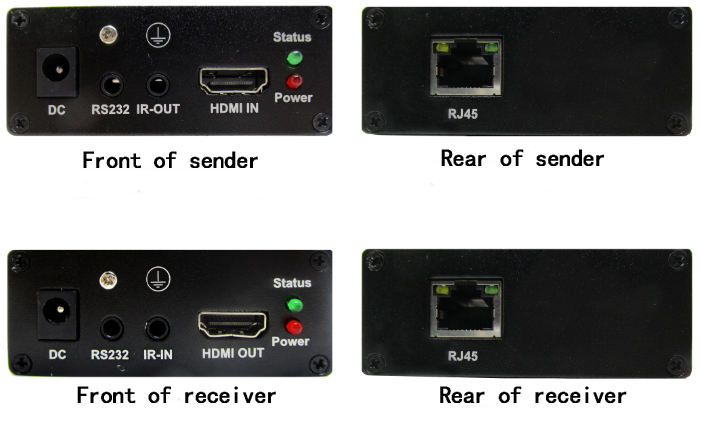

Sender : 93mm*74mm*30mm
Receiver: 93mm*74mm*30mm
|
|
Case
|
Aluminum
|
|
Color
|
Silver
|
|
N.W.
|
0.3Kg
|
|
Power
|
Voltage
|
DC5V/1A
|
|
sender power consumption
|
4W
|
|
receiver power consumption
|
3W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (non-condensing)
|
