This kit comes as pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
The HDW-170D HDMI extends HD 1080P HDMI video signals from Sender to Receiver via a Cat5e/6/7 cable at a distance of up to 170m.
Ideal for HD monitoring, multi-media release system, video conference, energy and power supply industries , government departments, medical systems, public utilities etc.

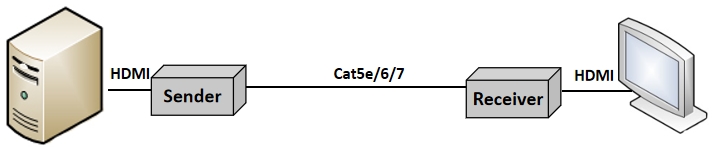

Point to point connection diagram:

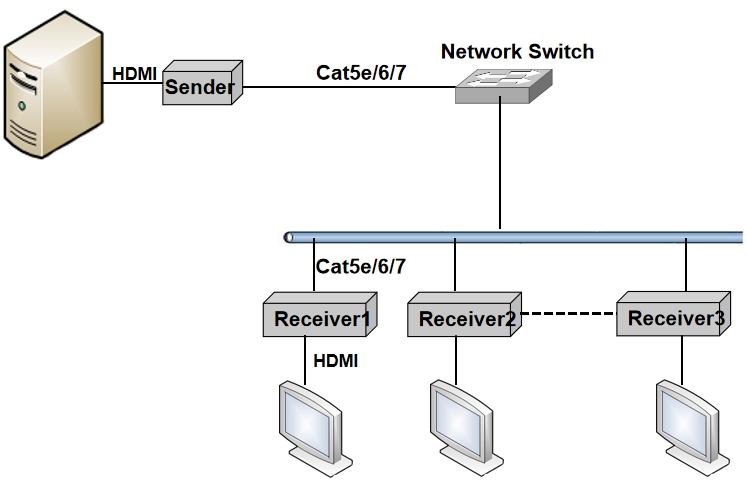

Point to multi-point connection diagram:
1. Advanced H.265 compression technology, high image quality with low latency;
2. Supports video resolutions up to 1920×1080@60Hz;
3. Supports transmission via LAN;
4. Direct 1-to-1 connection and 1-to-many connection through Network switch, a transmitter to multiple receivers, you can accomplish the extender and splitter function .
