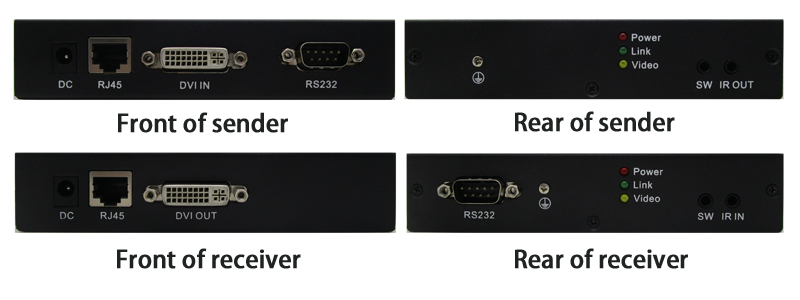

Product Introduction

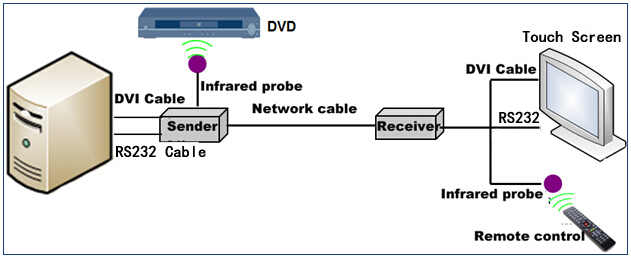

The product is composed of sender(marked with sender)and receiver(marked with receiver),can through one single network cable extend the DVI video,RS232, infrared to the far end. it adopt high-bandwidth lossless technology for digital signal transmission, user can see the real-time local image at remote.
This product can be widely used in the field of computer and monitoring, large-screen advertising, education, splicing system, bank stock system etc.
Product Features
1. Full digital, uncompressed, no time delay transmission
2. Transmission rate can reach10Gbps
3. Maximum 4K×2K resolution
4. Support HDCP standard
5. Compatible with HDMI signal
6. IR function (optional)
Production Specifications
Function
|
Number of input signal
|
Transmitter：1CH（DVI、IR、RS232）
|
|
Number of output signal
|
Receiver：1CH（DVI、IR、RS232）
|
|
Transmission distance
|
0-70m
|
|
Video transmission performance
|
Resolution
|
1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K
|
|
Maximum Transfer Rate
|
10Gbps
|
|
IR
|
Remote-control interface
|
3.5mm audio port
|
|
Remote-control interface
|
IR remote control signal
|
|
RS232
|
Interface
|
DB-9
|
|
Power supply
|
Voltage range
|
Input：AC110V-220V，50/60HZ
Output：DC9V/1A
|
|
Power consumption
|
Transmitter：5W
Receiver：5W
|
|
Appearance attribute
|
Size (L×W×H)
|
Transmitter: 140mm×78.4mm×30mm
Receiver: 140mm×78.4mm×30mm
|
|
Material
|
Steel casing
|
|
Color
|
Black
|
|
Operating environment
|
Storage temperature
|
-40-80℃
|
|
Relative humidity
|
0-95% (No condensation）
|
|
Working Temperature
|
-15℃-55℃
|
