Product Introduction

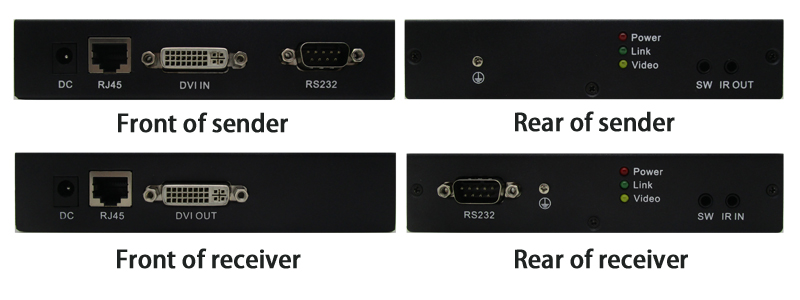

The product is composed of sender(marked with sender)and receiver(marked with receiver),can through one single network cable extend the DVI video, RS232, infrared to the far end. it adopt high-bandwidth lossless technology for digital signal transmission, user can see the real-time local image at remote.
This product can be widely used in the field of computer and monitoring, large-screen advertising, education, splicing system, bank stock system etc.
Product Features
1. Full digital, uncompressed, no time delay transmission
2. Transmission rate can reach10Gbps
3. Maximum 4K×2K resolution
4. Support HDCP standard
5. Compatible with HDMI signal
6. IR function (optional)
Production Specifications
Function
|
Number of input signal
|
Transmitter：1CH（DVI、IR、RS232）
|
|
Number of output signal
|
Receiver：1CH（DVI、IR、RS232）
|
|
Transmission distance
|
0-100m
|
|
Video transmission performance
|
Resolution
|
1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K
|
|
Maximum Transfer Rate
|
10Gbps
|
|
IR
|
Remote-control interface
|
3.5mm audio port
|
|
Remote-control interface
|
IR remote control signal
|
|
RS232
|
Interface
|
DB-9
|
|
Power supply
|
Voltage range
|
Input：AC110V-220V，50/60HZ
Output：DC9V/1A
|
|
Power consumption
|
Transmitter：5W
Receiver：5W
|
|
Appearance attribute
|
Size (L×W×H)
|
Transmitter: 140mm×78.4mm×30mm
Receiver: 140mm×78.4mm×30mm
|
|
Material
|
Steel casing
|
|
Color
|
Black
|
|
Operating environment
|
Storage temperature
|
-40-80℃
|
|
Relative humidity
|
0-95% (No condensation）
|
|
Working Temperature
|
-15℃-55℃
|
