 HAS-200D(DVI/HDMI&RS232&IR Extender 200m)
HAS-200D(DVI/HDMI&RS232&IR Extender 200m)
Share to:
Product Introduction:
       The product includes a sender and a receiver which can transmit DVI/HDMI, RS232 and IR signals by single cat5e. Video resolution up to 1920*1080@60Hz and extension distance can reach 200meters.
       The product can be widely used in remote PC control systems, surveillance system, touch screen system etc.

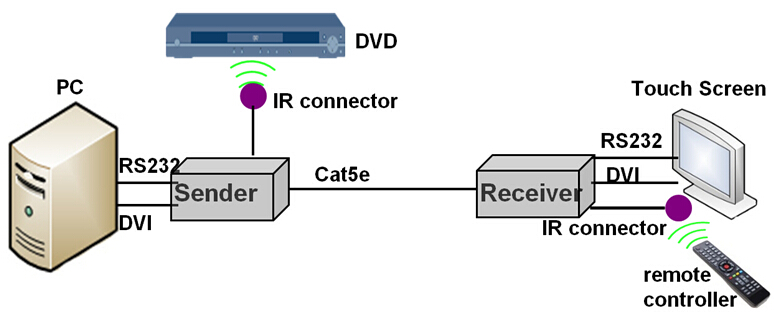

Application Map:


Product Feature:
1, Max resolution support 1920*1080@60Hz
2, Support DVI/HDMI, RS232, IR signals transmission at 200meters
3, Single network cable transmission, pure hardware design, no need any software driver, plug and play
4,With IR function for option

Product Specification:

Video


Video input

DVI-I

Video resolution

1080p

Serial

DB-9

IR

3.5mm phone jack

RJ-45

Cat 5E/Cat6

   Physical

Size(L×W×H)

Sender:  120mmX110mmX30mm

Receiver:  120mmX110mmX30mm

N.W.

0.7Kg

Power

Voltage

5V/3A  DC

Sender power consumption

<4W

Receiver power consumption

<4W

Environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (non-condensing)

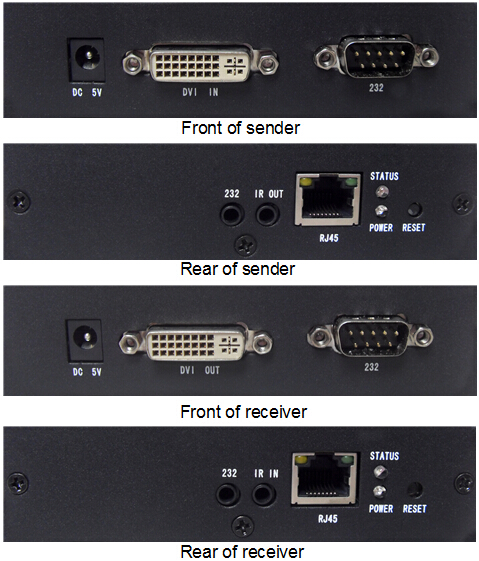

Front drawing:
