Product Introduction:
The product includes a sender and a receiver, which support VGA, PS2, Audio and Power switch signals transmission by single cat5e, and max video resolution 1920*1080 @ 60Hz.
The product can be widely used in data service center, industrial control, video conference system etc.
Product Feature:
1, Max resolution support 1920*1080@60Hz
2, Extension distance 200meters
3, Single network cable transmission, pure hardware design, no need any software driver, plug and play
4, No need to do any setting
Product Specification:
Function
|
Input
|
1-ch VGA+ 1-ch PS2+ 1-ch AUDIO
|
|
Output
|
Local unit: VGA, PS2
Remote unit: VGA, PS2, AUDIO
|
|
Extension distance
|
200meters
|
|
Video
|
Video input
|
Male VGA interface
|
|
Video output
|
Female VGA interface
|
|
Video bandwidth
|
>350MHz(-3dB)
|
|
synchronized signal
|
>200KHZ
|
|
Video resolution
|
Support 1080P
|
|
Audio
|
Interface
|
3.5mm stereo audio jack
|
|
Bandwidth
|
10HZ~20KHZ
|
|
Keyboard/mouse
|
PS2 type
|
|
Connection
|
RJ-45
|
Cat5e/Cat6
|
|
Physical parameter
|
Size（L×W×H）
|
Sender: 205mm×110mm×30mm
Receiver: 205mm×110mm×30mm
|
|
Net weight
|
1kg
|
|
Housing
|
Metal
|
|
Color
|
Black
|
|
Power
|
Voltage
|
DC5V/2A
|
|
Sender power consumption
|
<4W
|
|
Receiver power consumption
|
<3W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (Non-condensing)
|

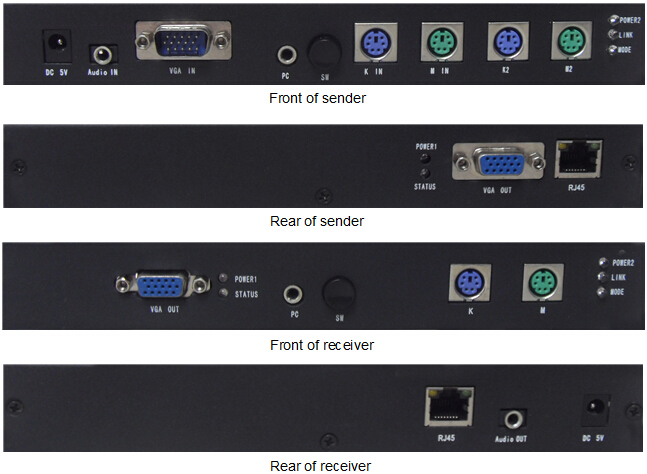

Front drawing:
