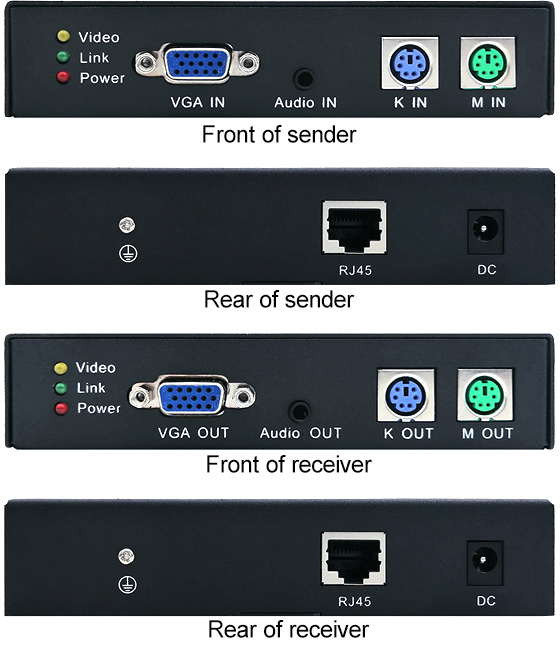

The product include one transmitter(marked with sender) and one receiver (marked with receiver),can extend the VGA video,PS2 keyboard& mouse, audio to the far end 120m through one single network cable.user can see the real-time local image at remote, the maximum resolution can reach:1920x1080 @ 60Hz.
It can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

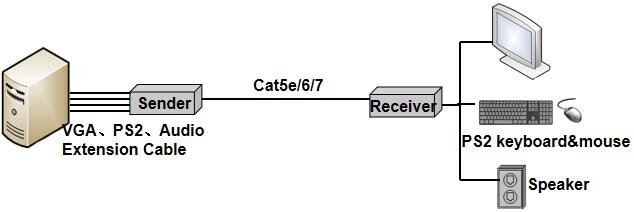

Connection Diagram:
1. Using digital no delay transmission, the image is clear and the anti-interference ability is strong;
2. Resolution up to 1920×1080@60Hz;
3. Plug and play, no software or driver needed;
4. Anti-static, lightning protection, strong anti-interference ability;
5. Video Auto Adjust.
