KVM-300H KVM Extender(Ordinary Grade)
KVM-300H KVM Extender(Ordinary Grade)
Share to:

   This product includes a Sender and a Receiver It can extend   keyboard, mouse and video ports of the computer max up to 300m through a single CAT5E/6/7 cable. There is a KVM port on Sender so that user can control local computer.
    This product can be widely used in computer and monitor field, large screen advertisement, education, bank and industry.


Features and Benefits:
  • It can extend keyboard,mouse and video port max of 300m

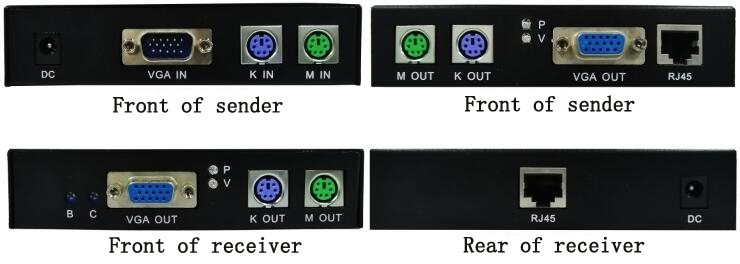

  • It provides a KVM port on the Sender
  • It can be switched from remote monitor to local monitor or switched from local monitor to remote monitor by the keystroke on the Sender or SCROLL on the local keyboard
  • Use the single cable (CAT5E/6/7), the cost is inexpensive
  • It supports (PS/2 port) keyboard and mouse, it supports (VGA) port monitor
  • It can remove and insert the local and remote keyboard and mouse
  • Power on computer use the emulational keyboard and mouse
  • It supports DOS, Windows, Unix, Linux system
  • It does not need a driver, it is simple to install
  • The remote keyboard and mouse display is in real-time
  • The anti-jamming is strong
  • The anti-lightning and anti-invasion is strong Cascade operation for increasing the distance
  • Index of anti-lightning and anti- invasion:withstand air-discharge 15KV, contiguity-discharge 8KV
  • Support the top resolution 1920x1440@60Hz

paramenter:

Size:
123mmx108mmx28mm
Weight:
0.55KG
input connector:
HD15PIN(VGA)
output connector:
HD15PIN(VGA)
local output:
HD15PIN(VGA)
bandwidth:
300MHz(-3 dB)

0-10MHz +0.1dB

0-130MHz +6dB to -0.8 dB
input level range:
0.5-2.0Vp-p
input level error:
less than 3mV
input impedance:
75Ω
output impedance:
75Ω
echo ullage:
-30dB@5MHz
Max DC compensation:
±5mV-0
SNR:
60dB
Connector standard:
HDB15,Mini-DIN6,RJ45
Video standard:
VGA,SVGA,XGA,SXGA,UXGA,LCD
Cable standard:
CAT5,CAT5E,CAT6 UTP
Power adapter:
DC9-12V/1A
operational temperature:
-25℃~+70℃
deposited temperature:
-40℃~+80℃
relative humidity:
0~95%(non-condensing)
MTBF:
>27000 hours
