DVB-70DU(DVI&USB&Power Switch&IR Extend 70m)
DVB-70DU(DVI&USB&Power Switch&IR Extend 70m)
Share to:
Product Introduction

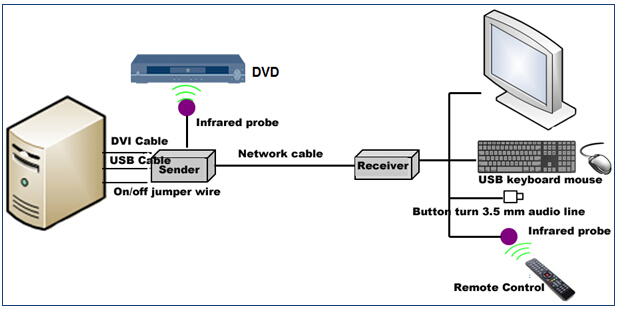

The product is composed of sender(marked with sender)and receiver(marked with receiver),can through one single network cable extend the DVI video,USB signal,remote switch, infrared to the far end. it adopt high-bandwidth lossless technology for digital signal transmission, user can see the real-time local image at remote.
This product can be widely used in the field of computer and monitoring, large-screen advertising, education, splicing system, bank stock system etc.
Product Features
1. Full digital, uncompressed, no time delay transmission
2. Transmission rate can reach10Gbps
3. Maximum 4K×2K resolution
4. Support HDCP standard
5. Compatible with HDMI signal
6. IR function (optional)
7. Remote switch function (optional)

Product Specification

Function

Number of input signal

Transmitter:1CH(DVI、USB、IR、Remote switch)

Number of output signal

Receiver:1CH(DVI、USB、IR、Remote switch)

Transmission distance

0-70m

Video transmission performance

Video input interface

DVI-I (only support DVI-D signal)

Video output interface

DVI-I (only support DVI-D signal)

Resolution

1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K

Maximum Transfer Rate

10Gbps

IR

Remote-control interface

3.5mm audio port

Remote-control interface

IR remote control signal

USB

Protocol

Only support USB keyboard and mouse

Power supply

Voltage range

Input:AC110V-220V,50/60HZ

Output:DC9V/1A

Power consumption

Transmitter:5W

Receiver:5W

Appearance attribute

Size (L×W×H)

Transmitter: 112.4mm×78.9mm×27.9mm

Receiver: 112.4mm×78.9mm×27.9mm

Material

Steel casing

Color

Black

Operating environment

Storage temperature

-40-80℃

Relative humidity

0-95% (No condensation)

Working Temperature

-15℃-55℃

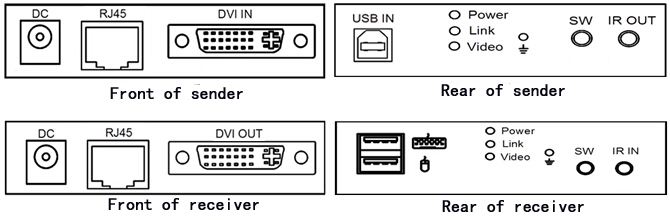

Front drawing:
