Product Introduction:
The product includes a sender (with “Sender” logo) and a receiver (with “Receiver” logo), supports DVI, USB, RS232, IR, Audio/PC signals transmission to remote location by single cat5e/6, user can operate a computer far away (200m max). Supports HD DVI-D signal only, max resolution 1920x1080 @ 60Hz.
The product can be widely used in data service center, industrial control, video conference system etc.
Product Feature:
1,Max resolution support 1920*1080@60Hz
2,Extension distance up to 200 meters
3,Single network cable transmission, pure hardware design, no need any software driver, plug and play
4,Audio and remote power switch can not be available in the same time, only one of them for option
5,IR & RS232 are optional features
Product Specification:
|
Function
|
Signal Input
|
Sender: DVI , USB, RS232, IR, Audio
Receiver: IR transmitting
|
|
Output
|
Sender: IR receiving
Receiver: DVI, Audio, USBx2
|
|
Distance
|
200m
|
|
DVI Connector & Performance
|
Video Input
|
DVI-I (Supports DVI-D only)
|
|
Video Output
|
DVI-I (Supports DVI-D only)
|
|
Video Resolution
|
Supports up to 1080p
|
|
Audio Jack & Performance
|
Socket
|
3.5mm Stereo Audio Jack
|
|
Bandwidth
|
10Hz~20KHz
|
|
IR Connector& Performance
|
Socket
|
3.5mm Audio Jack
|
|
Communication
|
Infra-red control signal
|
|
RS232
|
Socket
|
3.5mm Audio Jack
|
|
USB Port
|
Protocol
|
Supports USB Keyboard
and Mouse only
|
|
Transmission Port
|
RJ-45
|
For Cat5e/Cat6 cable
|
|
Properties
|
Size（L×W×H）
|
Sender: 205mm×110mm×30mm
Receiver: 205mm×110mm×30mm
|
|
Net Weight
|
1Kg
|
|
Case
|
Iron
|
|
Color
|
Black
|
|
Power Adaptor
|
Operating Voltage
|
Input：AC110V-220V，50/60HZ
Output：DC 5V/2A
|
|
Sender power
|
<4W
|
|
Receiver power
|
<4W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (Non-condensing)
|

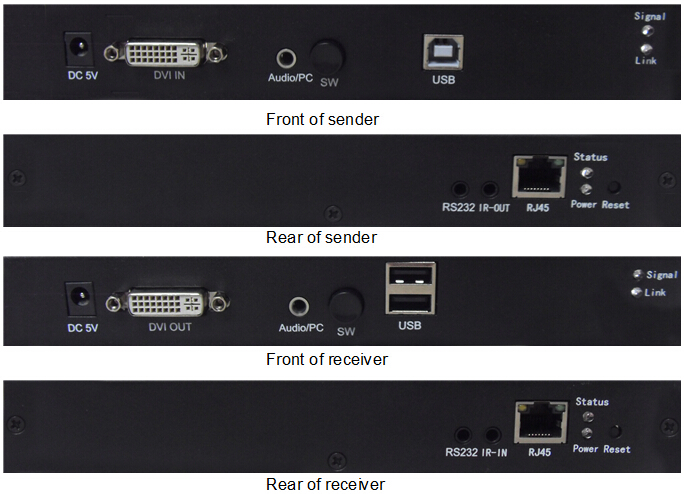

Front drawing:
