DVB-100DUA (DVI+USB+Audio Extend 100m)
DVB-100DUA (DVI+USB+Audio Extend 100m)
Share to:

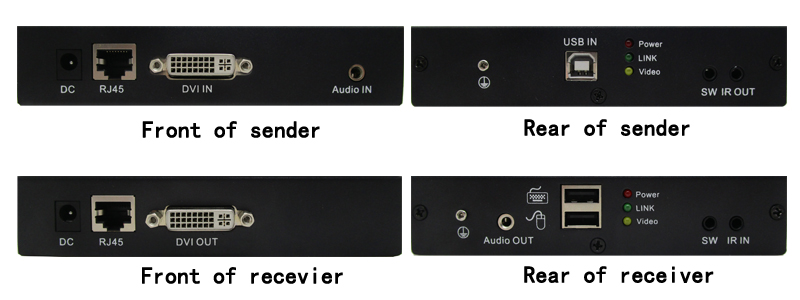

        This product include a transmitter(marked with sender)and a receiver(marked with receiver),can extend the DVI video,USB signal,stereo audio, infrared to the far end through one single network cable. it adopt high-bandwidth lossless technology for digital signal transmission, user can see the real-time local image at remote.
       This product can be widely used in the field of computer and monitoring, large-screen advertising, education, splicing system, bank stock system etc.

Application Map

1. Adopt HDBase-T technique,full digital, uncompressed, no delay transmission.
2. Transmission rate can reach10Gbps.
3. Maximum 4K×2K resolution.
4. Support HDCP standard.
5. Compatible with HDMI signal.
6. IR function (optional).

Function

Number of input signal

Transmitter:1CH(DVI、Audiio、USB、IR)

Number of output signal

Receiver:1CH(DVI、Audio、IR)2CH USB

Transmission distance

0-100m

Video transmission performance

Video input interface

DVI-I (only support DVI-D signal)

Video output interface

DVI-I (only support DVI-D signal)

Resolution

1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K

Maximum Transfer Rate

10Gbps

IR

Remote-control interface

3.5mm audio port

Remote-control interface

IR remote control signal

Audio

Interface

3.5mm stereo

USB

Protocol

Only support USB keyboard and mouse

Power supply

Voltage range

Input:AC110V-220V,50/60HZ
Output:DC9V/1A

Power consumption

Transmitter:5W
Receiver:5W

Appearance attribute

Size (L×W×H)

Transmitter:  140mm×80mm×30mm
Receiver:  140mm×80mm×30mm

Material

Steel casing

Color

Black

Operating environment

Storage temperature

-40-80℃

Relative humidity

0-95% (No condensation)

Working Temperature

-15℃-55℃
