Product Introduction:

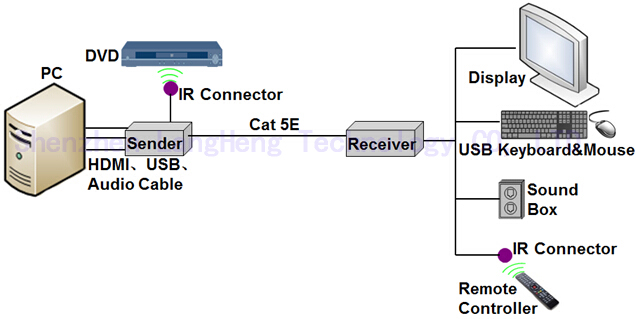

The product includes a sender (with “Sender” logo) and a receiver (with “Receiver” logo), transmits HDMI, USB, IR, Audio/PC (power control) signals to remote location over single cat5e/6, user can operate a computer far away (200m max). Supports HD HDMI, DVI-D video, max resolution 1920x1080 @60Hz.
The product is suited for data service center, industrial control, video conference system etc.
Features:
1. Supports HDMI1.3, HDCP1.2, all standard resolutions under 1920x1080@60Hz
2. Up to 200m range.
3. Supports DVI-D with HDMI to DVI gender cable
4. Plug & play, no software or driver, transmits all over single network cable
5. Audio and PC (power control) share one signal port, only one works, can not be activated both.
6. High ability against electromagnetic interference, works too in tough condition
7. Supports IR signals transmission too (optional)
Specifications:
Function
|
Input
|
Sender: HDMI, USB, AUDIO
Receiver: IR
|
Output
|
Sender: IR
Receiver:HDMI, AUDIO, 2xUSB
|
Distance
|
200 meters
|
Video & Parameters
|
Video Port
|
HDMI
|
HDMI Version
|
HDMI1.3
|
HDCP Version
|
HDCP1.2
|
HDMI Resolution
|
1080p/1080i/720p/720i/576p/576i/480p/480i
|
Video Color Format
|
24bit/30bit/36bit
|
Audio format
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
Input/Output TMDS signal
|
0.5-1.5Vp-p(TTL)
|
Input/Output DDC signal
|
5Vp-p(TTL)
|
Audio Features
|
Connector
|
3.5mm Stereo Jack
|
Reponses Frequency
|
10HZ~20KHZ
|
Infra-red Features
|
IR Port
|
3.5mm Audio Jack
|
IR signals
|
Infra-red remote control signals
|
USB Port
|
Protocol
|
Supports wired USB keyboard & mouse only
|
Cable Port
|
RJ-45
|
For Cat5e/Cat6 network cable
|
characteristic
|
Size(LxWxH)
|
Sender: 210mm×96mm×30mm
Receiver: 210mm×96mm×30mm
|
N.W
|
1Kg
|
Case
|
Metal
|
Color
|
Black
|
Power
|
Operating Voltage
|
Input:AC110V-220V,50/60HZ
Output:DC 5V/2A
|
Sender Power
|
Approx. 4W
|
Receiver Power
|
Approx. 4W
|
Condition
|
Operating Temp
|
-15℃-55℃
|
Storage Temp
|
-40-80℃
|
Humidity
|
0-95% (No condense)
|

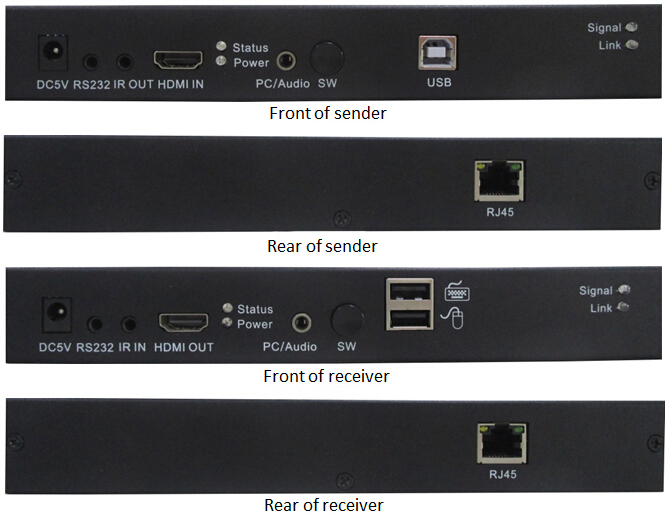

Front drawing
