HDT-50HUAS(HDMI+USB2.0+Two Way IR+AUDIO+RS232)Uncompressed Extend 50m
HDT-50HUAS(HDMI+USB2.0+Two Way IR+AUDIO+RS232)Uncompressed Extend 50m

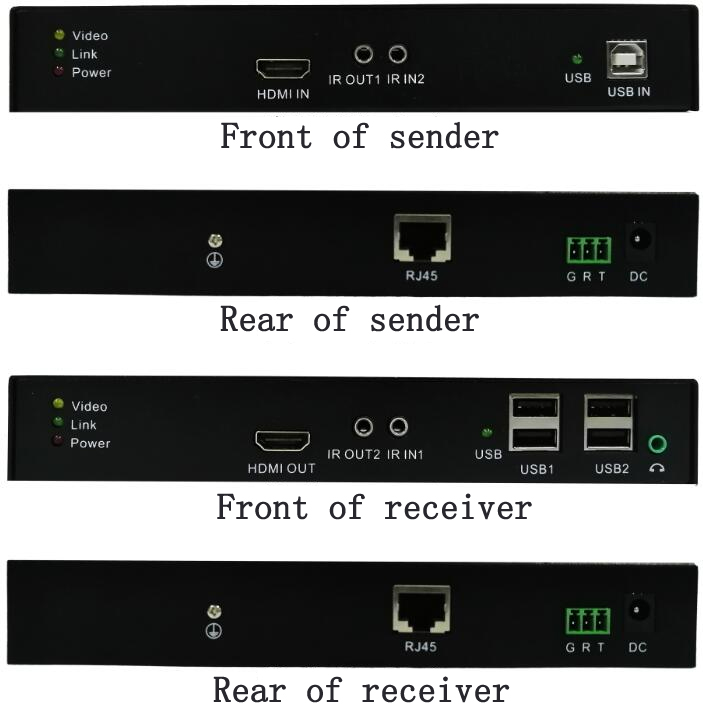

The kit comes as a pair, with one sender unit(marked with sender) and one receiver unit(marked with receiver).

It can extend  ultra high-resolution 4K HDMI signals,USB2.0,Independent audio from transmitter to the receiver via single CAT5e/6/7cable. And it can also transmit RS232 serial port signals at the same time, which can be used for remote transmission with touch screen, pan-tilt, electronic whiteboard and other equipment control. IR infrared signal can be used for infrared remote control of DVD, set-top box and other equipment. The farthest transmission distance is 50 meters, the image effect is clear and natural after transmission, and the resolution is up to 4K×2K.

Ideal for HD security monitoring, multimedia release system, video conference, big screen advertising,large screen splicing applications etc.

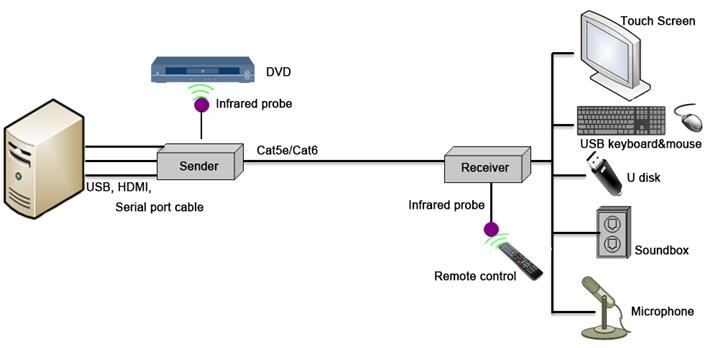

Connection Diagram:

1. Digital video transmission with zero latency, the image is clear and the anti-interference ability is strong;

2. Support multiple resolutions, up to 4K×2K;

3. Support USB2.0 protocol, USB device compatibility is good, will not freeze and restart.

4. Support the transparent transmission of EDID, compatible with different brands of display output devices;

5. Support two-way infrared transmission (optional).

6. Support two-way transmission of serial port (optional).

Function

Number of input signals

Sender:1 channel (HDMI、USB、RS232、IR)

Receiver:1 channel IR

Number of output signals

Sender:1 channel IR

Receiver:1 channel (HDMI、Audio、RS232、IR) 4channel USB

Transmission distance

0-50m

Video

I/O

HDMI

Video resolutions

Up to 4K×2K

Color depth supported

24-bit/30-bit deep color/36-bit deep color

Supported audio formats

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS signal

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

USB

Connector

Transmitter: Type B

Receiver: Type A

Protocol

USB2.0

Audio

Connector

USB input for transmitter, 3.5mm stereo audio jack for receiver

RS-232

Connector

3-pin phoenix connector

Type

Bi-directional

Infrared control

Connector

3.5mm audio jack

Signals

Infrared remote control signal

Cabling

RJ-45

Cat5E/Cat6/Cat7

General

Dimensions(L×W×H)

Sender:  192mm×94mm×30mm

Receiver:  192mm×94mm×30mm

Housing enclosure

Iron

Colors available

Black

G.W.

1.2Kg

Power supply

Power supply

DC 12V/1.5A

Power consumption of sender unit

4W

Power consumption of receiver unit

4W

Operating environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (no condensation)
