HDT-150HU(HDMI+USB Keyboard&Mouse+IR) Extend 150m
HDT-150HU(HDMI+USB Keyboard&Mouse+IR) Extend 150m
Share to:

The kit comes as a pair, with one sender unit(marked with sender) and one receiver unit(marked with receiver).

It can extend  ultra high-resolution 4K HDMI signals,USB keyboard and mouse from transmitter to the receiver via single CAT5e/6/7 cable. IR infrared signal can be used for infrared remote control of DVD, set-top box and other equipment. The farthest transmission distance is 150 meters, the image effect is clear and natural after transmission, and the resolution is up to 4K×2K@60HZ..

Ideal for HD security monitoring, multimedia release system, video conference, big screen advertising,large screen splicing applications etc.

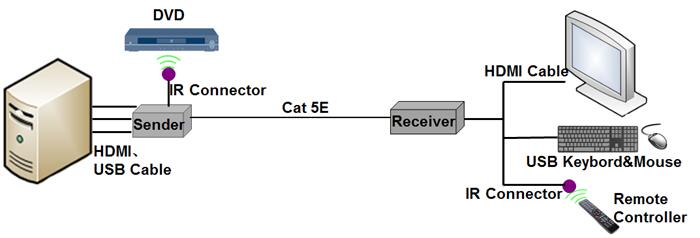

Connection Diagram:
1. Digital video transmission with zero latency, the image is clear and the anti-interference ability is strong;
2. Supports video resolutions up to 4K×2K@60HZ;
3. Ensure compatibility for your remote displays with EDID pass-through
4. Supports two-way infrared transmission (optional).

Function

Number of input signals

Sender1 channel (HDMIUSBIR)

Receiver1 channel IR

Number of output signals

Sender1 channel IR

Receiver1 channel (HDMIIR) 2channel USB

Transmission distance

0-150m

Video

I/O

HDMI

Video resolutions

Up to 4K×2K@60HZ

Color depth supported

24-bit/30-bit deep color/36-bit deep color

Supported audio formats

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS signal

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

USB

Connector

Type A

Protocol

Only for USB keyboard and mouse

Infrared control

Connector

3.5mm audio jack

Signals

Infrared remote control signal

Cabling

RJ-45

Cat5E/Cat6/Cat7

General

DimensionsL×W×H

Sender:  173mm×94mm×30mm

Receiver:  173mm×94mm×30mm

Housing enclosure

Iron

Colors available

Black

G.W.

1.4Kg

Power supply

Power supply

DC 12V/1A

Power consumption of sender unit

4W

Power consumption of receiver unit

4W

Operating environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (no condensation
