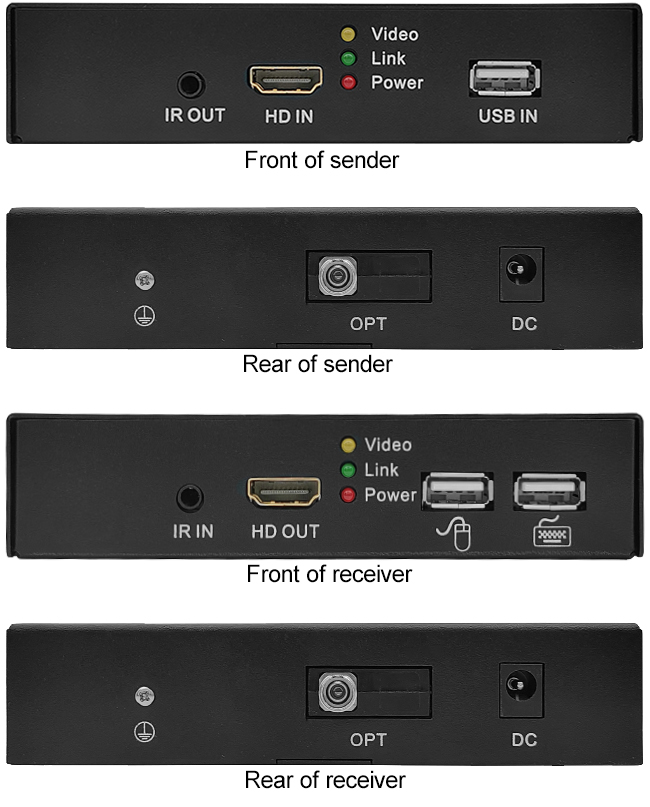

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
The NVO-3HU HDMI extender kit extends FHD 1080P HDMI signals to the remote end through single SM/MM fiber cable at a distance of up to 20km. The IR extension enables you to control an IR-enabled source device, such as a DVD or TV Set-top box, from the remote location.
Ideal for HD security monitoring, data centers, industrial control systems, online education, bank and telecommunications data terminals, centralized computer management applications etc.

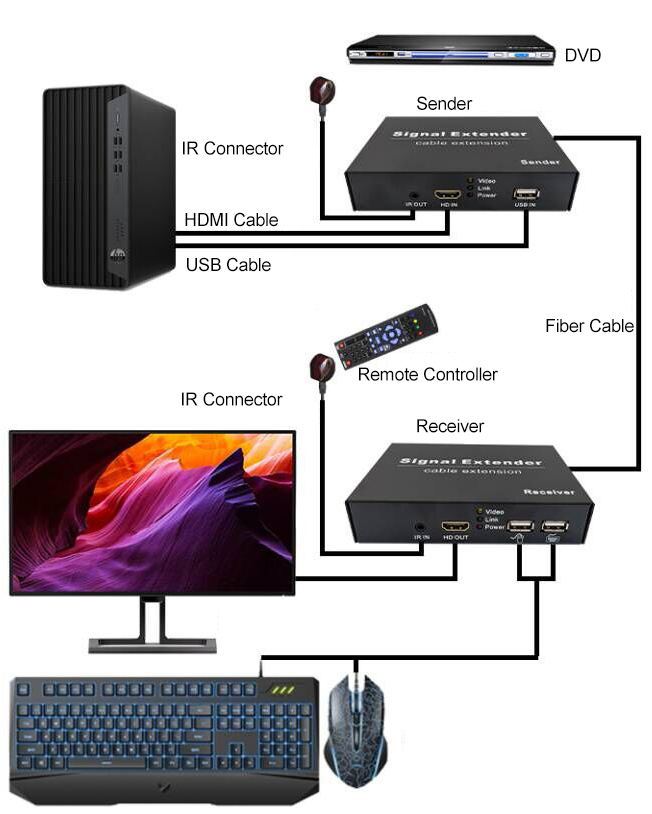

Connection Diagram:
1.Extends HDMI signals up to 20km via single-mode fiber cable or up to 2km via multi-mode fiber cable;
2.Supports video resolutions up to 1920×1080@60Hz ;
3.Equipped with 2 USB ports on the Receiver (RX) to control your PC at a remote location with a USB keyboard and mouse;
4.IR remote control (optional) - Allows source device to recognize remote commands; You can control the HDMI source device at a secondary location;
5.Plug-n-Play installation, no software installation or hardware setup is required .
