Product introduction:

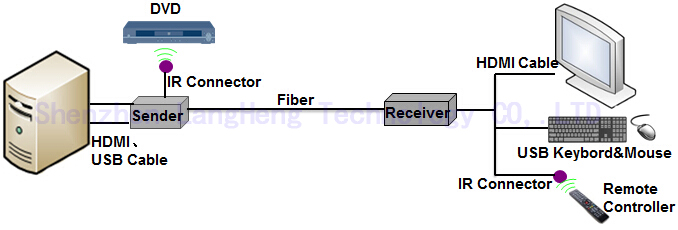

This set of equipment includes a sender and a receiver, which can transmit HDMI/DVI, USB and IR signals to a remote location over single/duplex fiber cable, so that user can see the real-time picture image remotely.
The product can be widely used in CCTV security, data center, industrial control, video education, bank, enterprises, etc.
Product feature:
1, Supports up to 1920×1080@60Hz
2, Pure hardware design, need not driver or software, plug and play
3, Also can support DVI-D signal transmission
4, IR function (optional)
Specifications:
|
Signals
|
Input
|

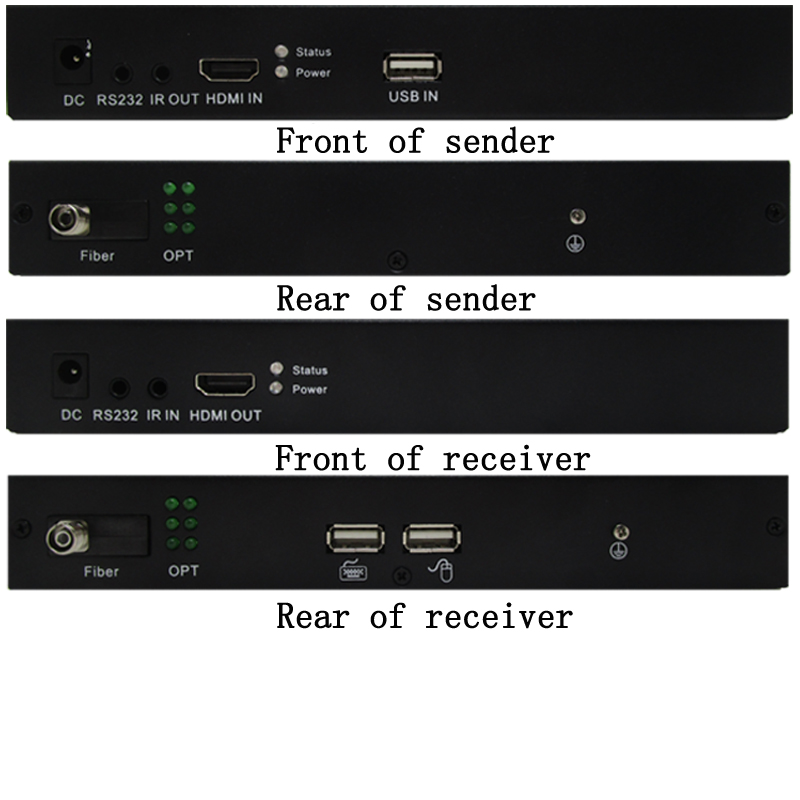

Sender：One way (HDMI, USB, IR）
|
|
Output
|
Receiver：One way (HDMI, IR）, 2*USB
|
|
Distance
|
2KM(MM fiber)/20KM(SM fiber)
|
|
Video and Audio
|
Video Input Port
|
HDMI
|
|
Video Output Port
|
HDMI
|
|
HDMI version
|
HDMI1.3
|
|
HDCP version
|
HDCP1.2
|
|
HDMI Resolution
|
Up to 1920x1080@60Hz
|
|
Video color format
|
24bit/deep color 30bit/deep color 36bit
|
|
Audio format
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
TMDS
|
0.5-1.5Vp-p(TTL)
|
|
DDC
|
5Vp-p(TTL)
|
|
USB
|
Port
|
Type A
|
|
Protocol
|
Supports USB mouse and keyboard only
|
|
IR & Port
|
Port
|
3.5mm audio jack
|
|
Signals
|
IR remote control signals
|
|
Fiber
|
Connector & type
|
Single or multi mode, SC/FC port
|
|
Wavelength
|
850nm/1310nm/1550nm
|
|
appearance
|
Size(LxWxH）
|
Sender: 200mm×100mm×30mm
Receiver: 200mm×100mm×30mm
|
|
Net Weight
|
1.12Kg
|
|
Material
|
Iron
|
|
Color
|
Black
|
|
Power
|
Power Adaptor
|
Input：AC110V-220V，50/60HZ
Output：DC9V/2A
|
|
Power of Sender
|
<7W
|
|
Power of Receiver
|
<6W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (non-condensing)
|
