KVO-3HU(HDMI/DVI+USB Keyboard&Mouse+IR Optical fiber transmission 20KM)

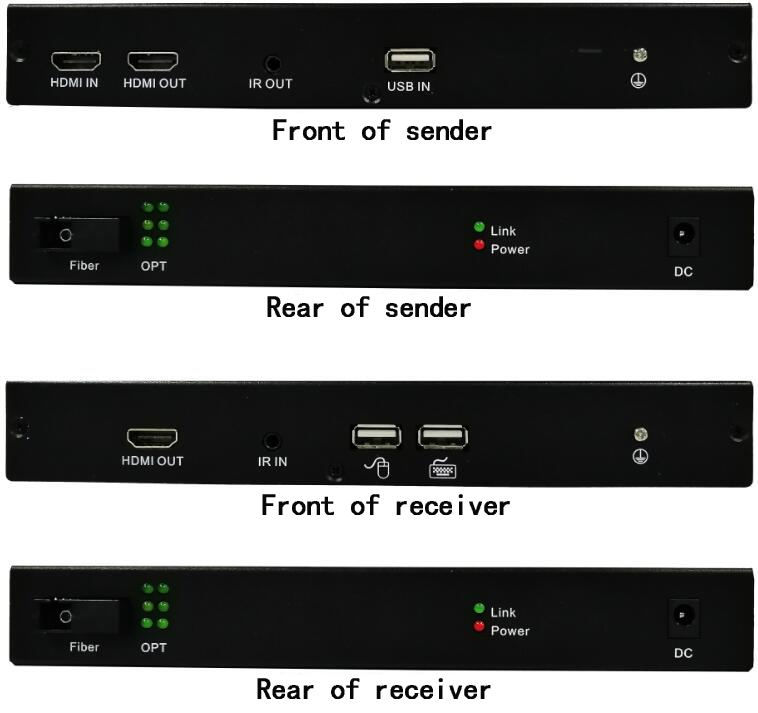

The kit comes as a pair, with one sender unit and one receiver unit.
This HDMI extender supports HDMI and USB signals to be extended up to 2km(MM fiber)/20km(SM fiber) over single fiber optic. IR support, allows user to control video sources like DVD, set-up boxes from the display location with IR.

It can be widely used in HD security monitoring , data service center, industrial control system, online education, data terminal of bank...etc

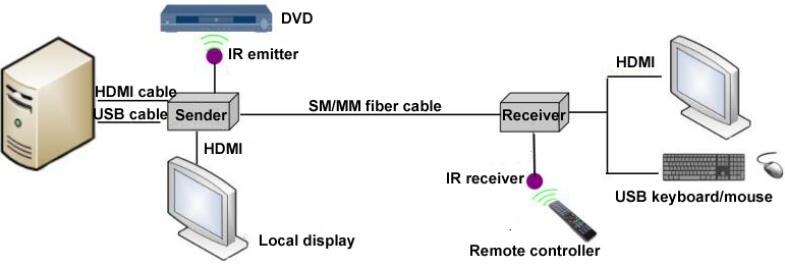

Connection Diagram:

1.Supports video resolutions up to 1920×1080@60Hz
2.It features a local HDMI output on the sender unit
3.Plug and play, no driver needed
4.Compatible with DVI equipment when using with an HDMI-to-DVI adapter
5.Easily control your video source from a remote location with IR remote control extension (optional)

Function	Input signals	Sender：1 channel（HDMI、USB） Receiver：1 channel IR
	Output signals	Sender：1 channel（HDMI、IR Receiver: 1 channel HDMI, 2 channel USB
	Transmission distance	MM fiber cable: Up to 2km SM fiber cable: Up to 20km
Video	Input	HDMI
	Output	HDMI
	HDMI Version	HDMI1.3
	HDCP Version	HDCP1.2
	Video resolutions	Up to 1080P
	Color depth supported	24-bit/30-bit deep color/36-bit deep color
	Audio formats supported	DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
	TMDS signal	0.5-1.5Vp-p(TTL)
	DDC signal	5Vp-p(TTL)
USB	Type	USB Type-A
USB	Standard	For USB keyboard/mouse only
Infrared remote control	Connector	3.5mm audio jack
Infrared remote control	Remote control interface signal	Infrared remote control signal
Cabling	Type	SM/MM fiber cable,SC/FC connector
Cabling	Wavelength	850nm/1310nm/1550nm
General	Dimensions(LXWXH)	Sender: 215mm×105mm×30mm Receiver: 215mm×105mm×30mm
	G.W.	2.3Kg
	Enclosure type	Iron
	Color	Black
Power supply	Voltage	Input：AC110V-220V，50/60HZ Output：DC9V/2A
	Power consumption of sender	<7W
	Power consumption of receiver	<6W
Operating environment	Working temperature	-15℃-55℃
	Storage temperature	-40-80℃
	Humidity	0-95% (no condensation）
