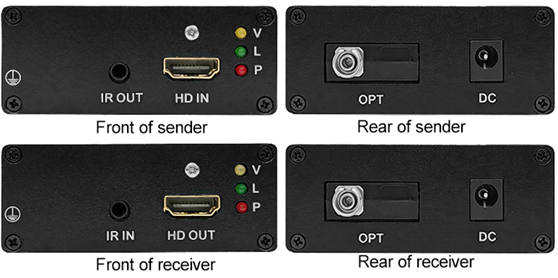

This kit comes as a pair, with one Sender unit (marked with Sender) and one Receiver unit (marked with Receiver).
The NVO-3H HDMI extender kit supports Full HD 1080P HDMI signals to be extended up to 20km over a single-mode fiber cable or up to 2km over a multi-mode fiber cable. The IR extension enables you operate your display and an IR-enabled source device, such as a DVD or TV Set top box, from the remote location.
Ideal for HD security monitoring, multimedia release, video conference, multimedia classrooms, online education applications, etc.

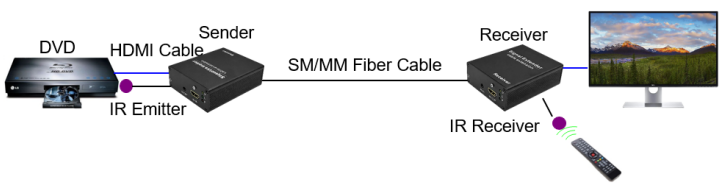

Connection diagram:
1.Digital transmission at zero latency, crystal clear image with strong anti-interference ability;
2.Extends HDMI signals up to 20km via a single-mode (SM) fiber cable or up to 2km via a multi-mode (MM) fiber cable;
3.Supports video resolutions up to 1920*1080P@60Hz;
4.IR remote control (optional)- Allows source device to recognize remote commands; You can control the HDMI source device at a secondary location;
5.Plug and play installation, no software or driver needed.
