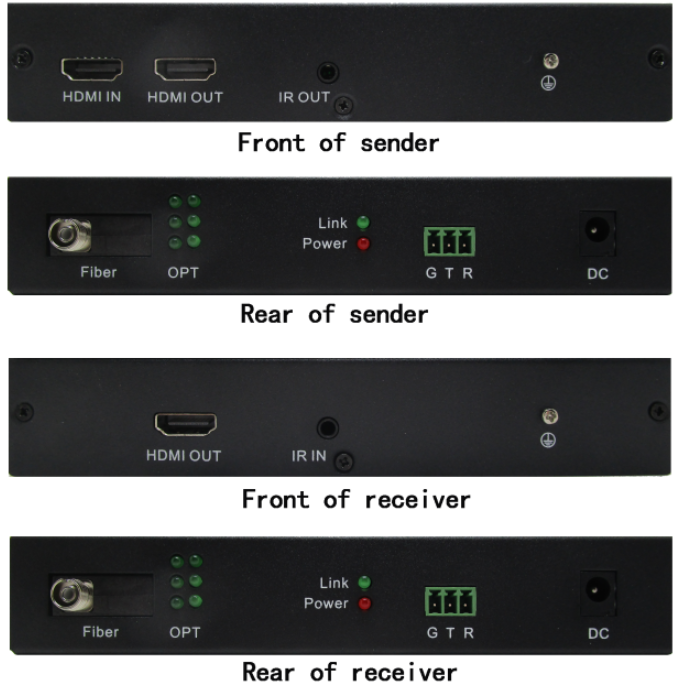

The device includes a sender (with “sender” mark) and a receiver
(with “receiver” mark) , Using H.264 high-definition digital video compression
technology, only single-core fiber can be used to signal Source HDMI, IR, and
RS232 interfaces extend distances up to 20 kilometers and support resolutions
up to 1080P. And can also transmit RS232 serial port signal for remote
transmission with touch screen, PTZ, electronic whiteboard and other equipment
control, IR signal can be remote control of DVD, TV box and other
equipment.
Widely used in computing and surveillance systems, big screen
advertisement system, video wall, bank, stock market, education system etc.

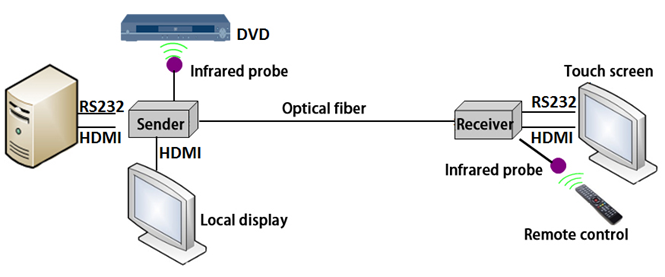

Connection diagram
1. Using H.264 high-definition digital video compression technology, the
product is stable and reliable, the video is clear, the code stream is small,
and the delay is low;
2. Supports the highest resolution up to 1920×1080@60Hz;
3. Supports both single-mode fiber and multi-mode fiber;
4. The transmitter has an HDMI loopback interface;
5. The serial port supports bidirectional transmission (optional);
6. Infrared function (optional).
