MVO-3H(HDMI&IR Optical fiber transmission 20KM)
MVO-3H(HDMI&IR Optical fiber transmission 20KM)
Share to:
Product introduction:

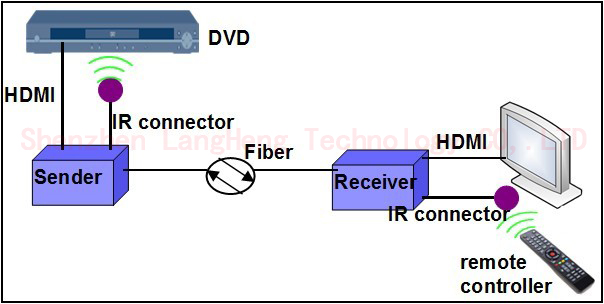

   This set of equipment includes a sender and a receiver, which can transmit video and IR signal to a remote location over single/duplex fiber cable, so that user can see the real-time picture image remotely.
   The product support HDMI video and audio transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz, max distance 2KM (MM fiber cable)/ 20KM(SM fiber cable).
   The product can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

Model list:

Model

Fiber type

Distance

Signals available for option

Option

MVO-1H

Multi mode
Dual core

2KM

HDMI、IR

MVO-2H

Single mode
Dual core

20KM

HDMI、IR

MVO-3H

Single mode
Single core

20KM

HDMI、IR

MVO-4H

Multimode
Single core

2KM

HDMI、IR



Product feature:
1, Support 1920×1080@60Hz
2, Max extension distance 2KM(MM fiber)/20KM(SM fiber)
3, Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
4, Also can support DVI signal transmission
5, IR function (optional)

Product specification:



Video

I/O connector

HDMI

HDMI version

HDMI1.1 1.2 1.3

HDCP

HDCP1.2

HDMI resolution

1080p/1080i/720p/720i/576p/576i/480p/480i

Video color format

24bit/deep color 30bit/deep color 36bit

Audio format

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

Input cable length

≤20m AWG26 HDMI 1.3 standard cable

Output cable length

≤20m AWG26 HDMI 1.3 standard cable

Optical

Connector

SM/MM  SC/FC type

Wave length

850nm/1310nm/1550nm

Physical

Size (L× W ×H)

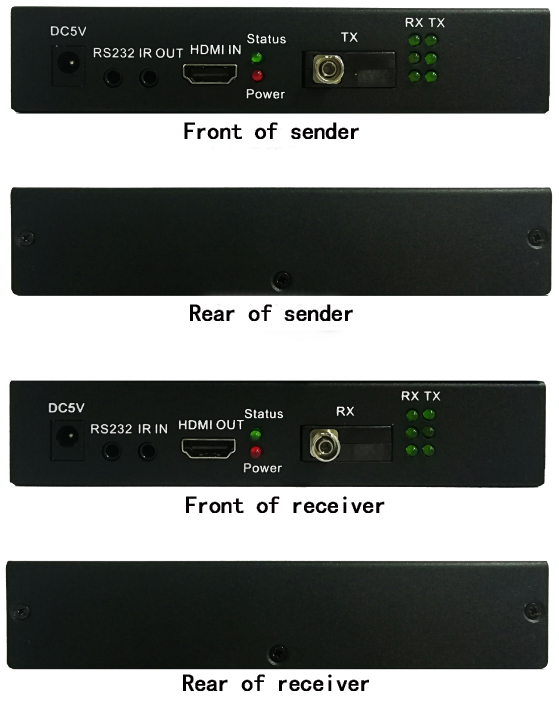

Sender : 150mm*105mm*30mm
Receiver: 150mm*105mm*30mm

Case

metal

Color

Black

N.W.

0.75Kg

Power

Voltage

5V/3A DC

sender power consumption

6W

receiver power consumption

6W

Environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (non-condensing)
