This product is a pair of complete sets of equipment, one of which is a sender and one is a receiver; the sender is marked with the word "Sender" and the receiver is marked with the word "Receiver".Using only a single Ethernet cable to extend the VGA video, independent audio, and PS2 keyboard and mouse of the computer host to the remote end, users can operate the host in real-time from the remote end. At the same time, the transmitter also provides a set of KVM loop out interfaces, allowing users to use the computer host in the near end, making it convenient for users to control and use the computer host. This product supports VGA high-definition video: 1920 x 1080@60Hz Real time transmission, with a maximum direct transmission distance of 200 meters.
This product can be applied in environments such as data service centers, industrial control, video education, banking and telecommunications data terminals, enterprise computer usage management, and home applications.

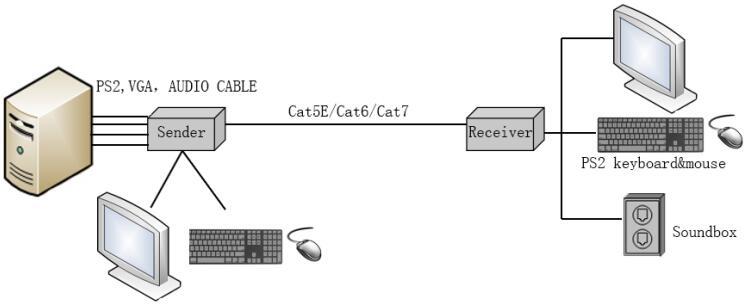

Connection Diagram:
1. Supports a maximum resolution of up to 1920 x 1080@60Hz ;
2. The maximum transmission distance is 200 meters;
3. The transmitter has a KVM loop out interface;
4. Has strong anti-interference ability;
5. Video does not require adjustment.
