Multi-screen Box is an industrial high-performance product specially developed for the needs of small-scale LCD splicing screens, multi-channel projection fusion and other scenes. It adopts HDMI/DP input interface and HDMI output interface.Simple installation, convenient debugging, plug and play.Support multiple splicing modes: horizontal screen splicing / vertical screen splicing.

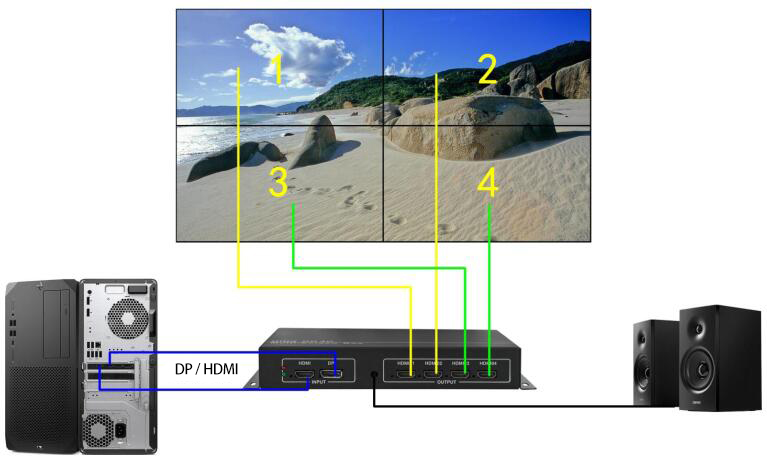

Connection diagram:
1，Ultra HD resolution, support 4 HDMI outputs with 1920x1200 resolutions at most, and 1 HDMI/DP input with the highest resolution 3840x2400@60Hz Downward compatible with low
resolution, factory default 3840x2160@60Hz.
2，Adopting 28nm process high-end programmable FPGA chip and full hardware real-time processing architecture, the ultra-fast processing speed will not be delayed.
3，Industrial design, thickened 8-layer PCB board, 16kV super anti-static ability, super product stability.
4，Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation, without any external heat dissipation measures, high reliability.
5，No stretching, no deformation, no need to compress the input source, and the picture is clear.
|
Product name
|
Ultra HD Multi-Screen Box
|
|
Input interface
|
1way
|
|
Output interface
|
4way
|
|
Supported resolution
|
Horizontal screen point-to-point splicing
|
|
1x2Maximum supported resolution
|
3840*1200@60Hz
|
|
1x3Maximum supported resolution
|
5760*1200@60Hz
|
|
1x4Maximum supported resolution
|
7680*1200@60Hz
|
|
2x2Maximum supported resolution
|
3840*2400@60Hz
|
|
Supported resolution
|
Vertical screen point-to-point splicing
|
|
2x1Maximum supported resolution
|
1920*2400@60Hz
|
|
3x1Maximum supported resolution
|
1920*3600@60Hz
|
|
4x1Maximum supported resolution
|
1920*4320@60Hz
|
|
Factory default resolution
|
3840x2160@60Hz
|
|

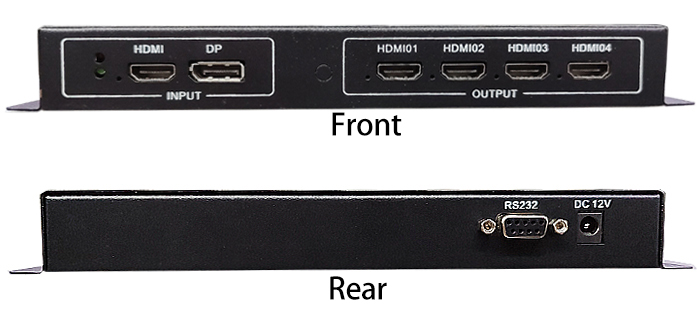

Input interface type
|
1 DP interface (multiplexed with HDMI)
|
|
1 HDMI interface (multiplexed with DP)
|
|
1 RS232 input port
|
|
Output interface type
|
4 HDMI
|
|
1 3.5mm audio output（optional）
|
|
Size
|
240mm*160mm*28mm
|
|
Weight
|
0.8Kg
|
|
Power
|
DC-12V 2A
|
